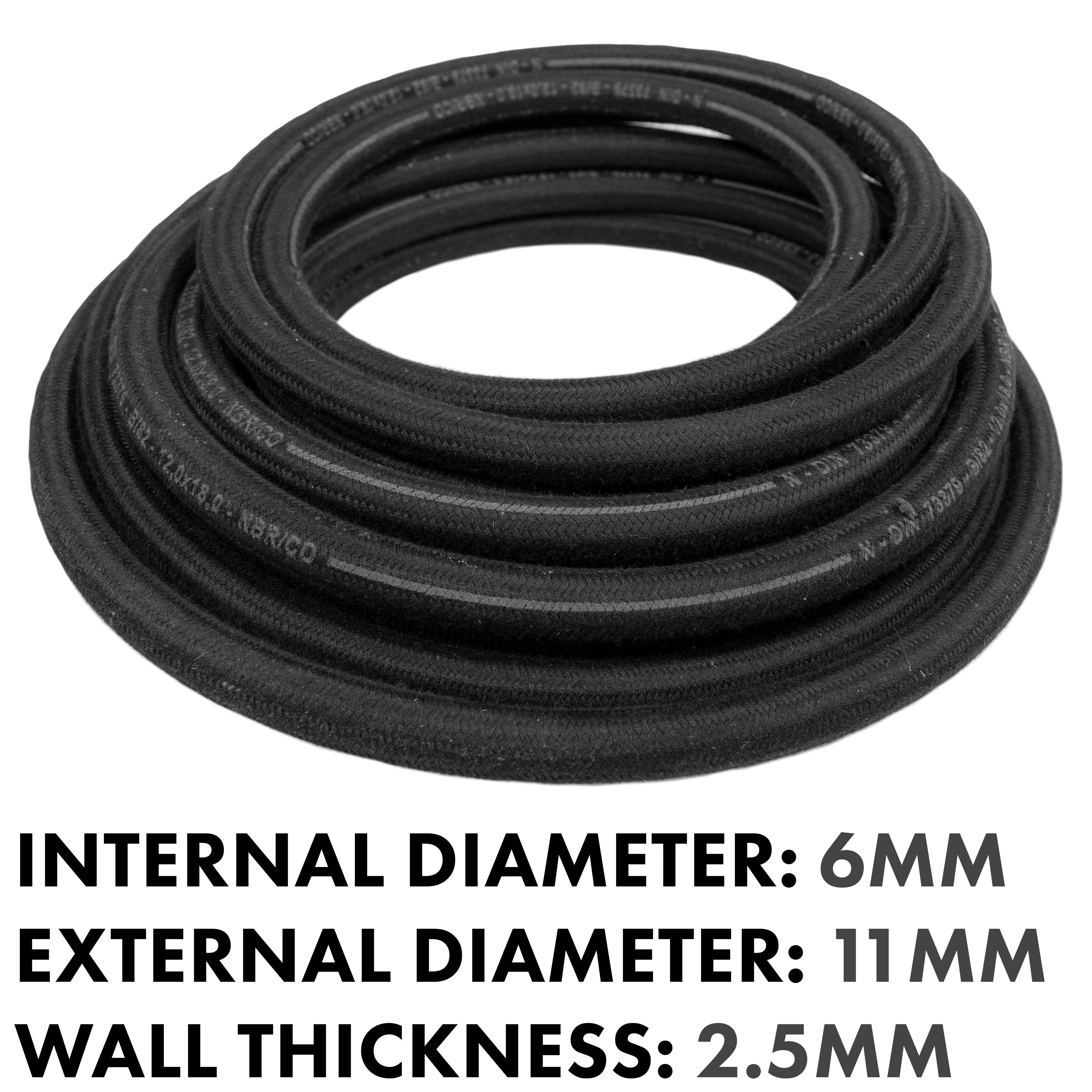

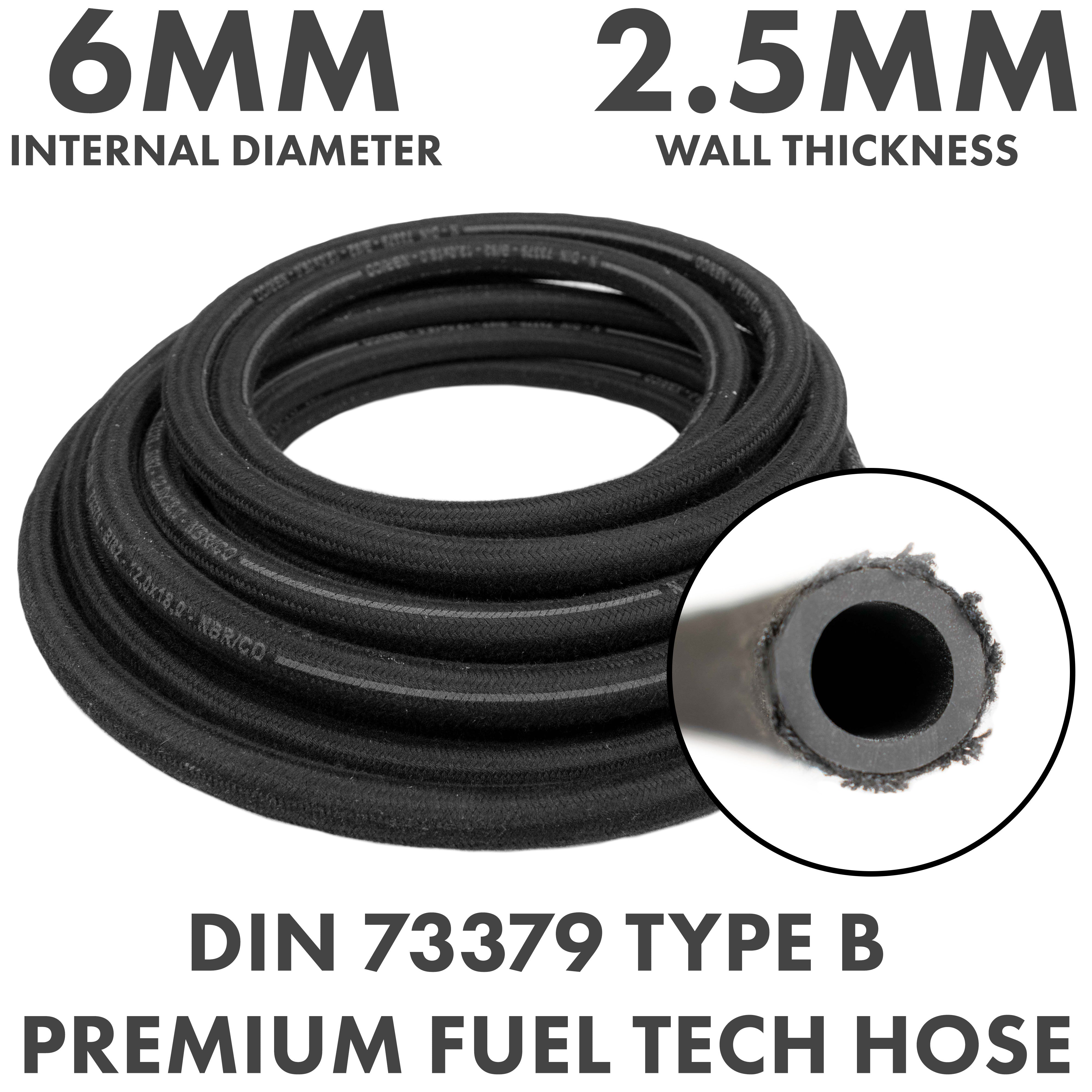

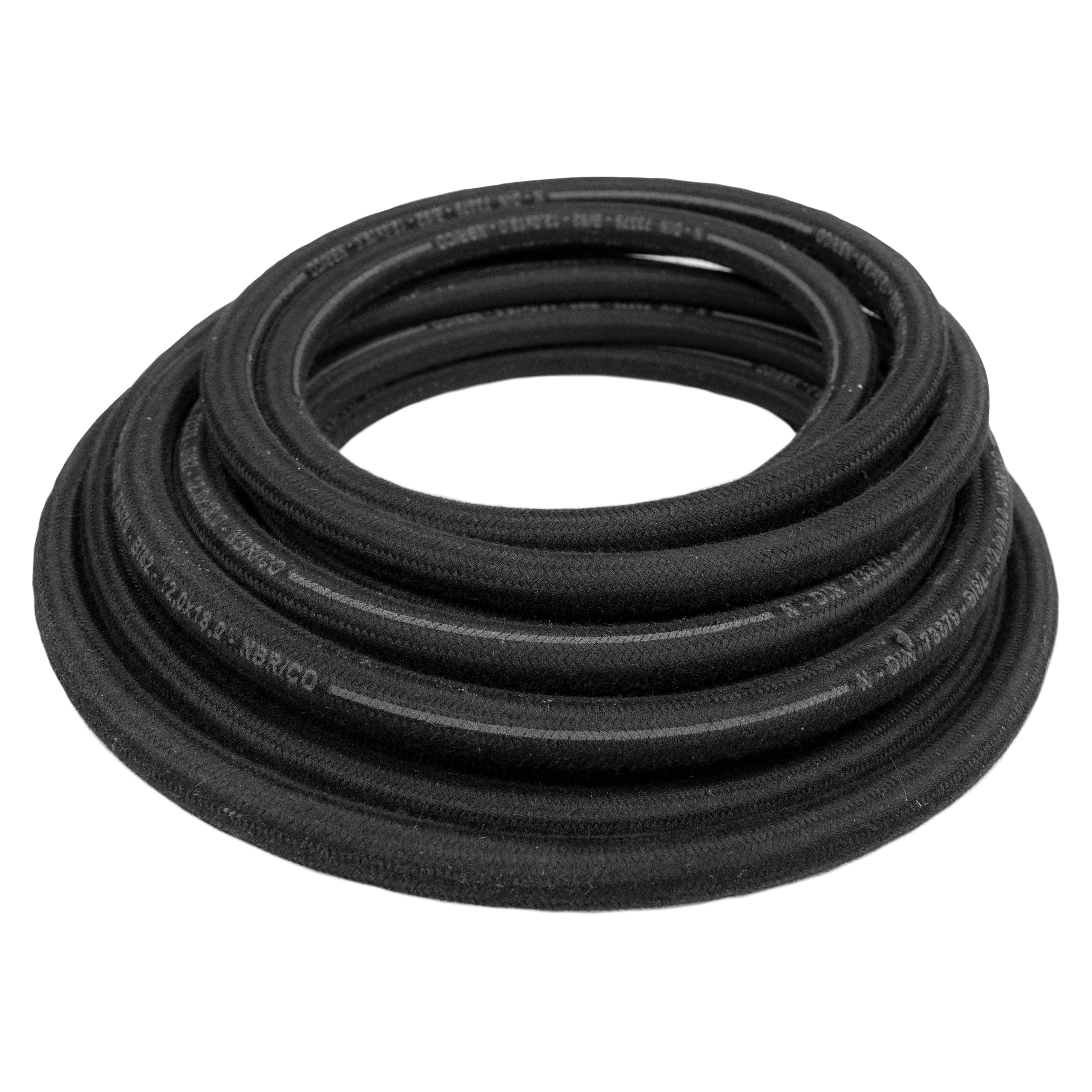

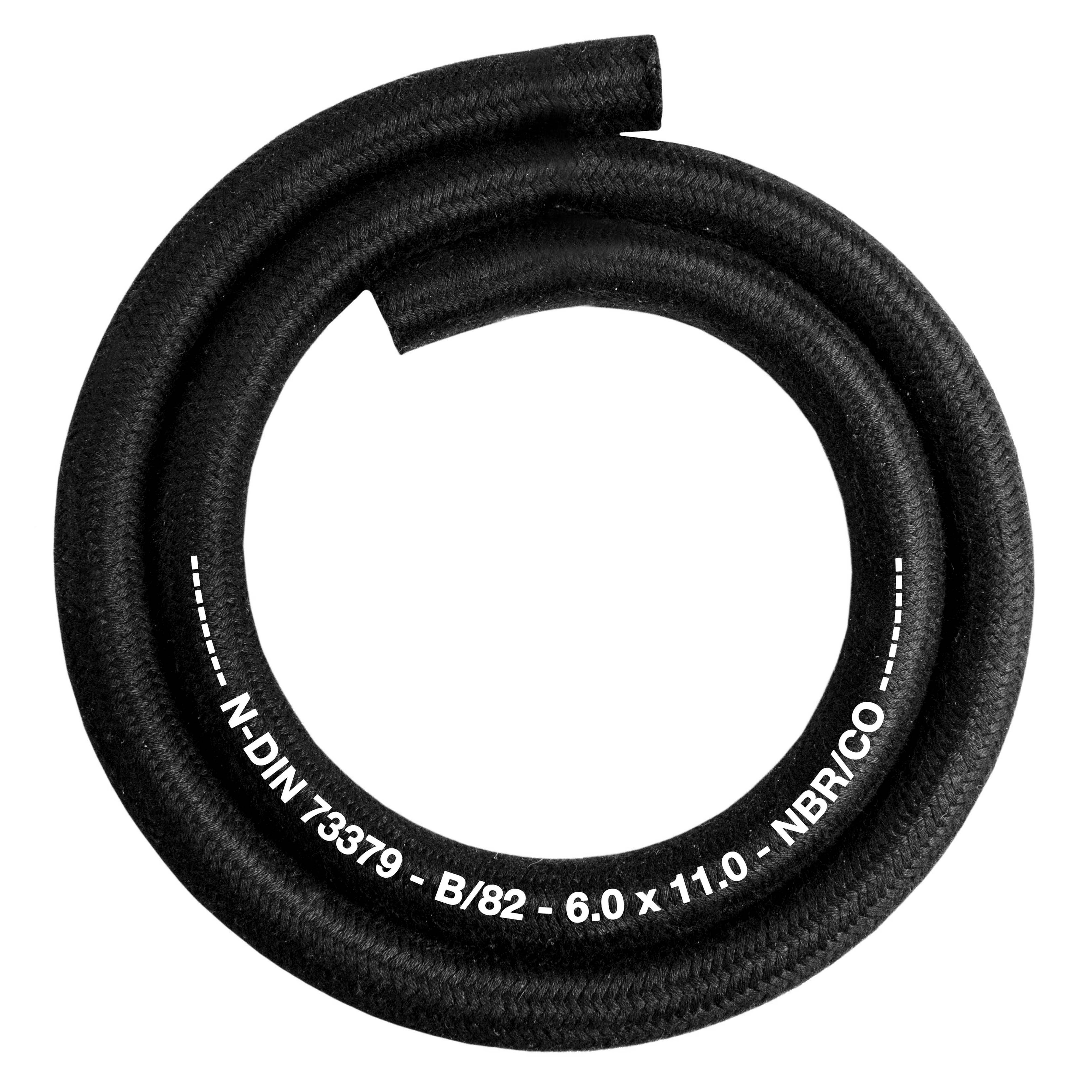

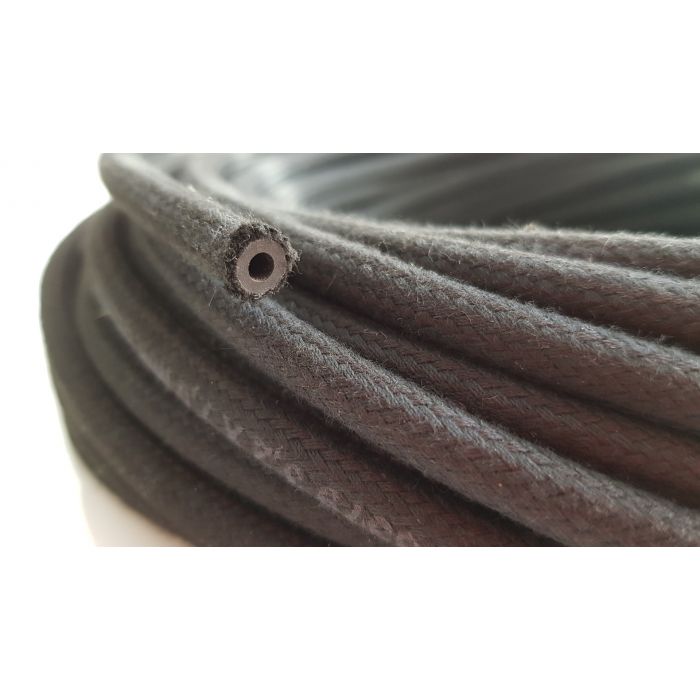

High-Performance DIN 73379 Type B Fuel Hose (6mm/11mm)

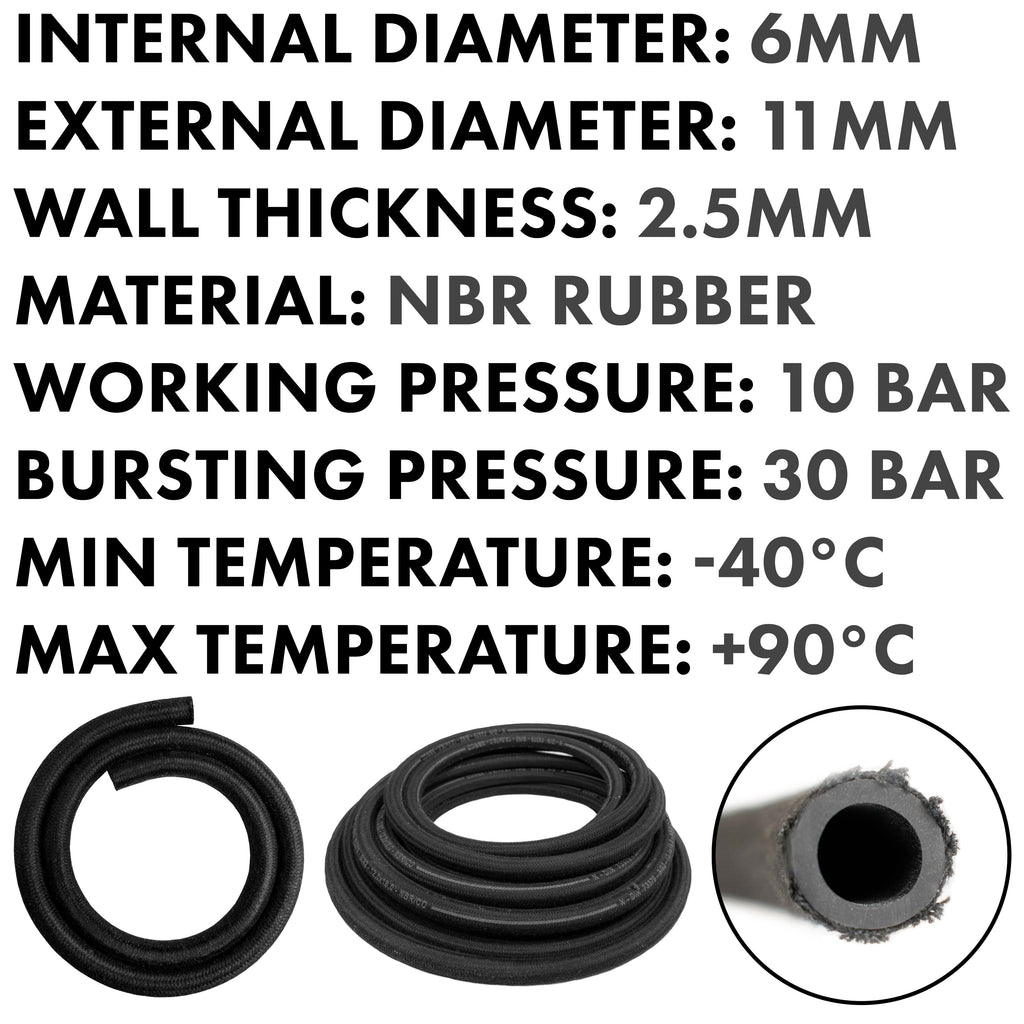

Engineered for reliability in demanding fuel systems, this 6mm/11mm fuel hose meets DIN 73379 Type B standards. It is a medium-pressure, low-permeation solution designed to handle a wide range of fluids, including gasoline, ethanol, diesel, biodiesel, and sour gas. With a 10 bar working pressure and a 30 bar burst pressure, this hose provides the durability required for both automotive and industrial applications.
Robust Construction and Material Excellence

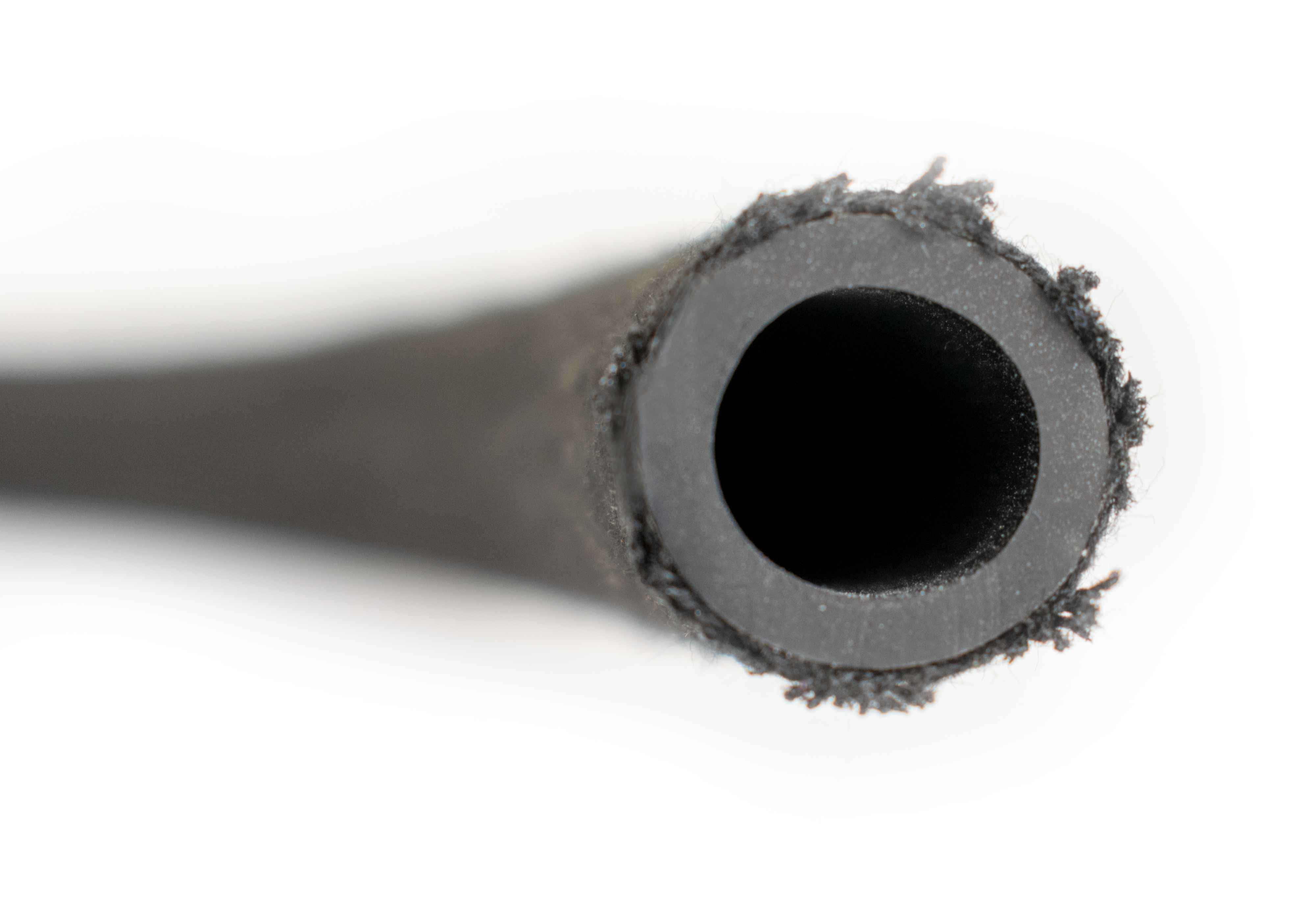

- Core Material: Manufactured from NBR (nitrile butadiene rubber) for superior chemical resistance, low permeation, and high flexibility.

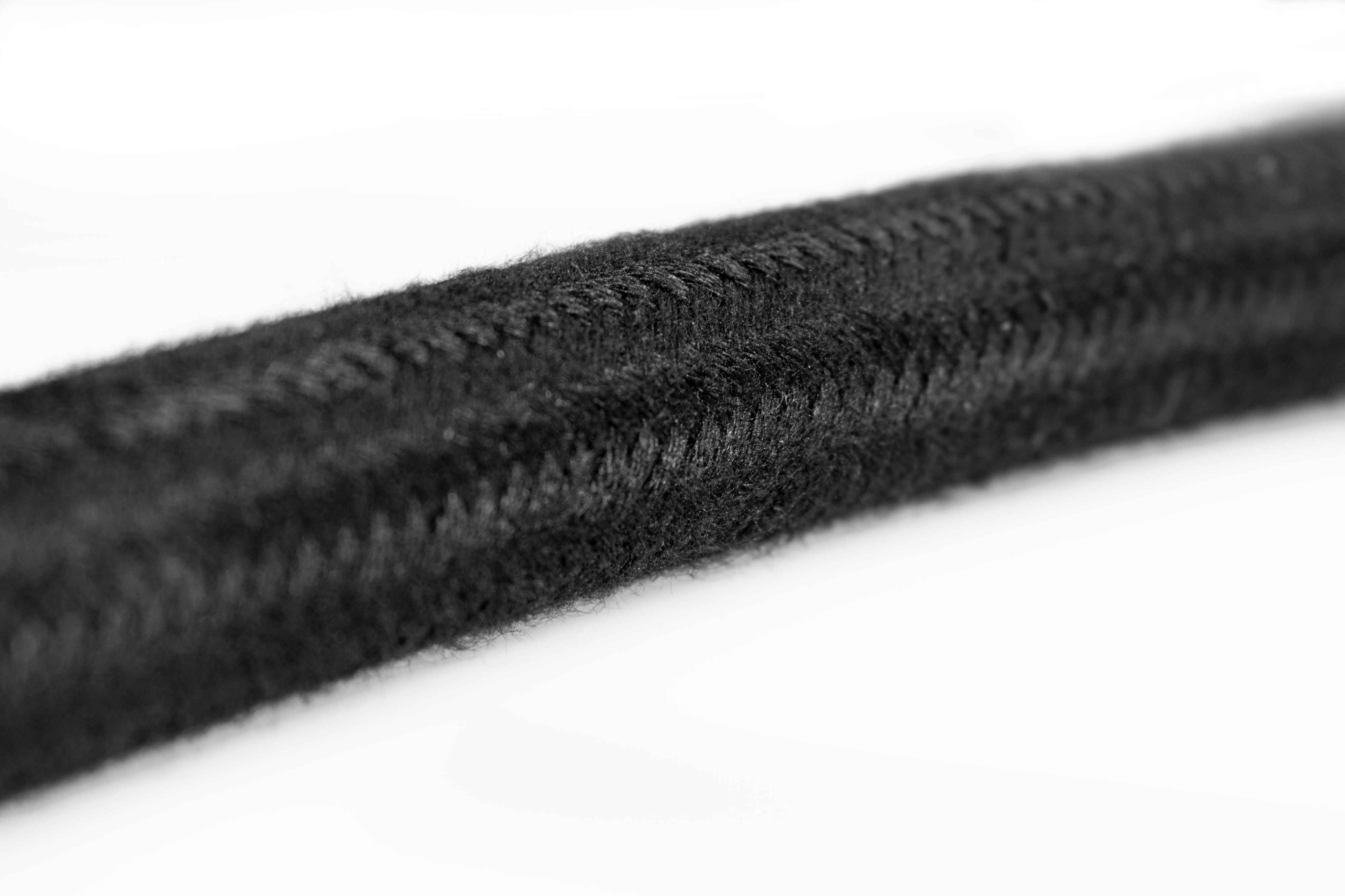

- Protective Cover: Features a heat-resistant textile braid made from CSM (chlorosulfonated polyethylene), offering exceptional protection against oils, lubricants, and biodiesel.
- Environmental Resilience: The CSM outer layer provides high resistance to ozone and harsh weather conditions, ensuring long-term performance.
- Temperature Range: Fully operational in temperatures from -40°C to +90°C.
Compliance and Environmental Standards
This hose is designed with environmental responsibility in mind, adhering to ROHS, EPA, and CARB emission standards. Specifically, it complies with the CARB requirements set out in 13CCR section 2754. Its low-permeation design effectively minimizes fuel vapor loss, helping to reduce harmful emissions.
Versatile Application
This hose is compatible with fuels containing up to 50% aromatic content, high-grade fuels, diesel, coolant liquids, and non-oxidizing liquid detergents. It is an ideal choice for fuel injection and coolant management systems.
Important Usage Notes
- Power Steering: Compatible with mineral oil-based power steering fluids; however, please verify the working pressure of your specific system before installation.
- Braking Systems: Not suitable for use in braking systems.
- Logistics: We can optimize packaging to maximize unit capacity per parcel. Please contact us for specific unit capacities and dimensions.
For further technical details, please view the ‘Specifications’ drop-down tab.
