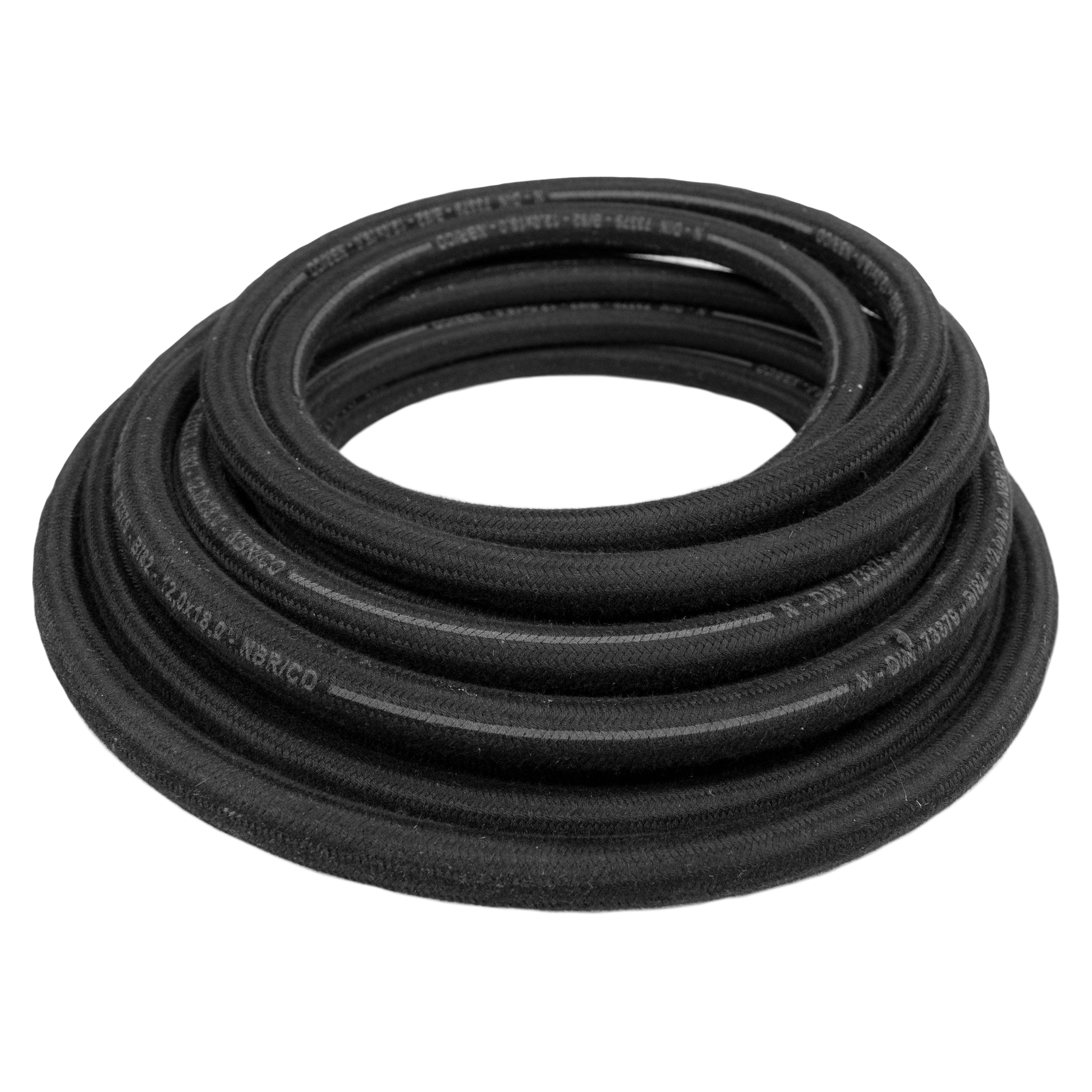

High-Performance DIN 73379 Type B Fuel Hose (8mm/13mm)

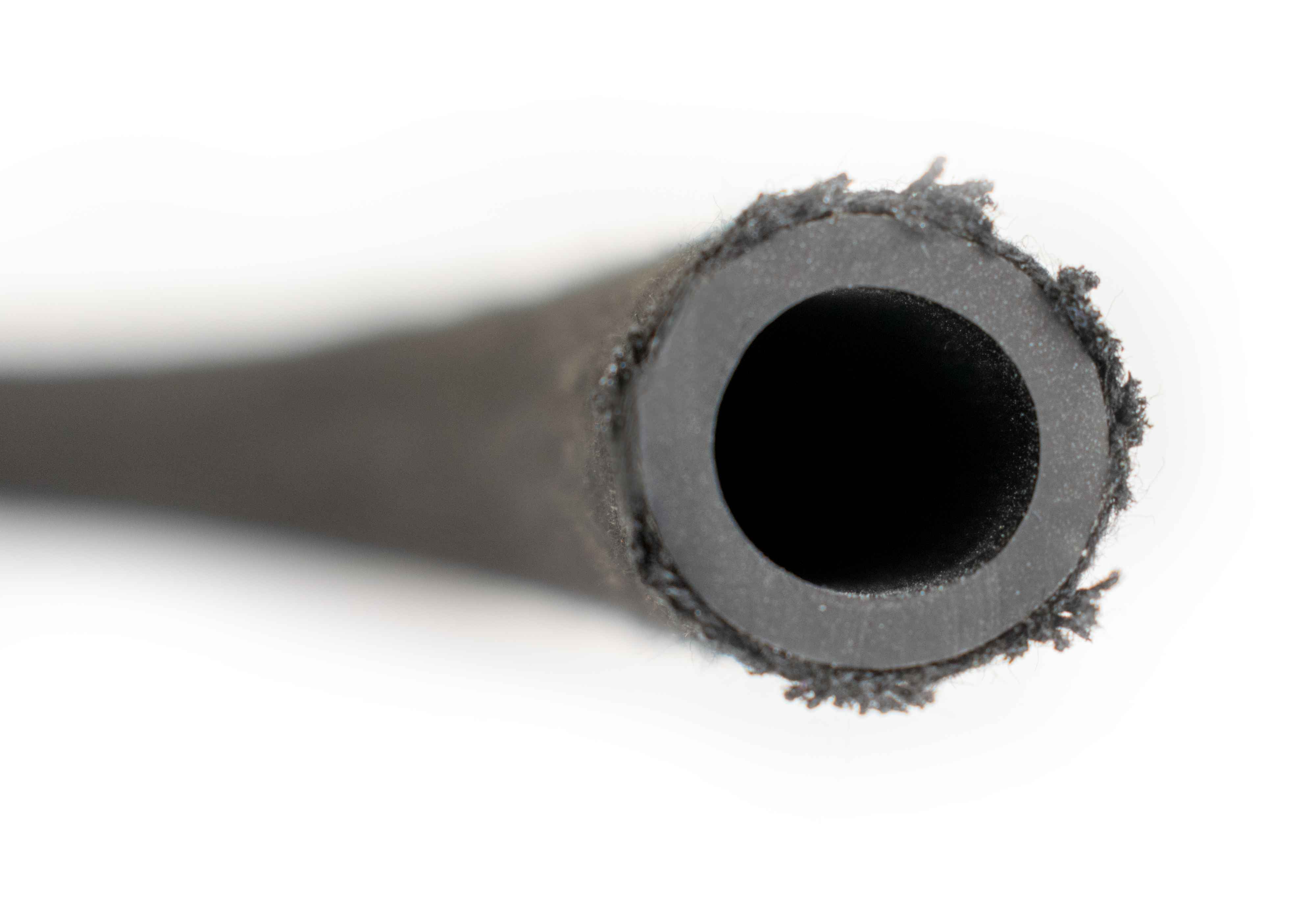

Engineered for medium-pressure fuel delivery, this 8mm/13mm fuel hose provides a low-permeation solution designed for gasoline, ethanol, diesel, biodiesel, and sour gas. Built to withstand demanding environments, it features a 10 bar working pressure and a 30 bar bursting pressure threshold. The core is constructed from NBR (nitrile butadiene rubber), offering superior flexibility and high resistance to chemical permeation, ensuring long-term reliability for fuel injection systems.
Advanced Heat-Resistant Construction

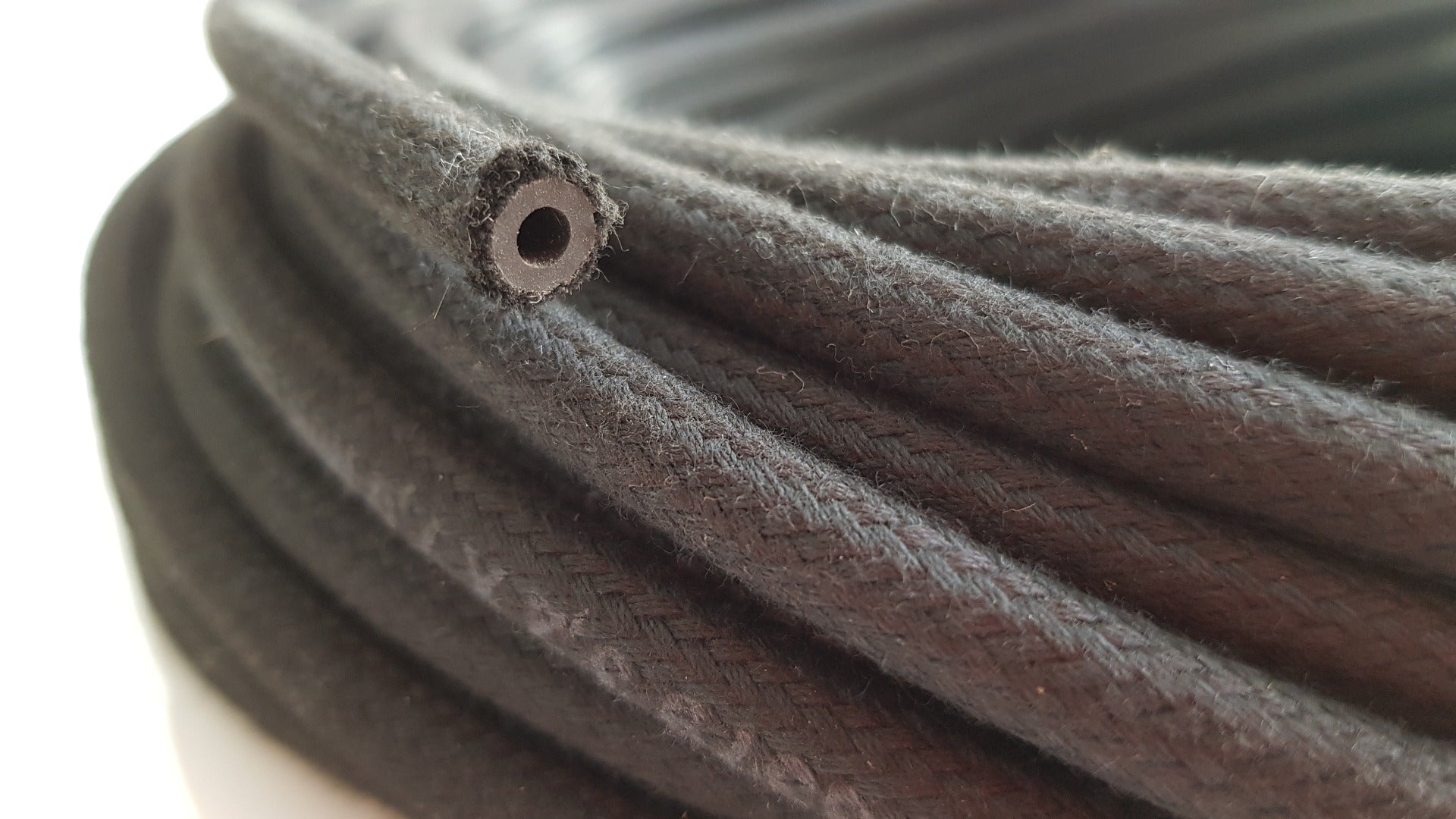

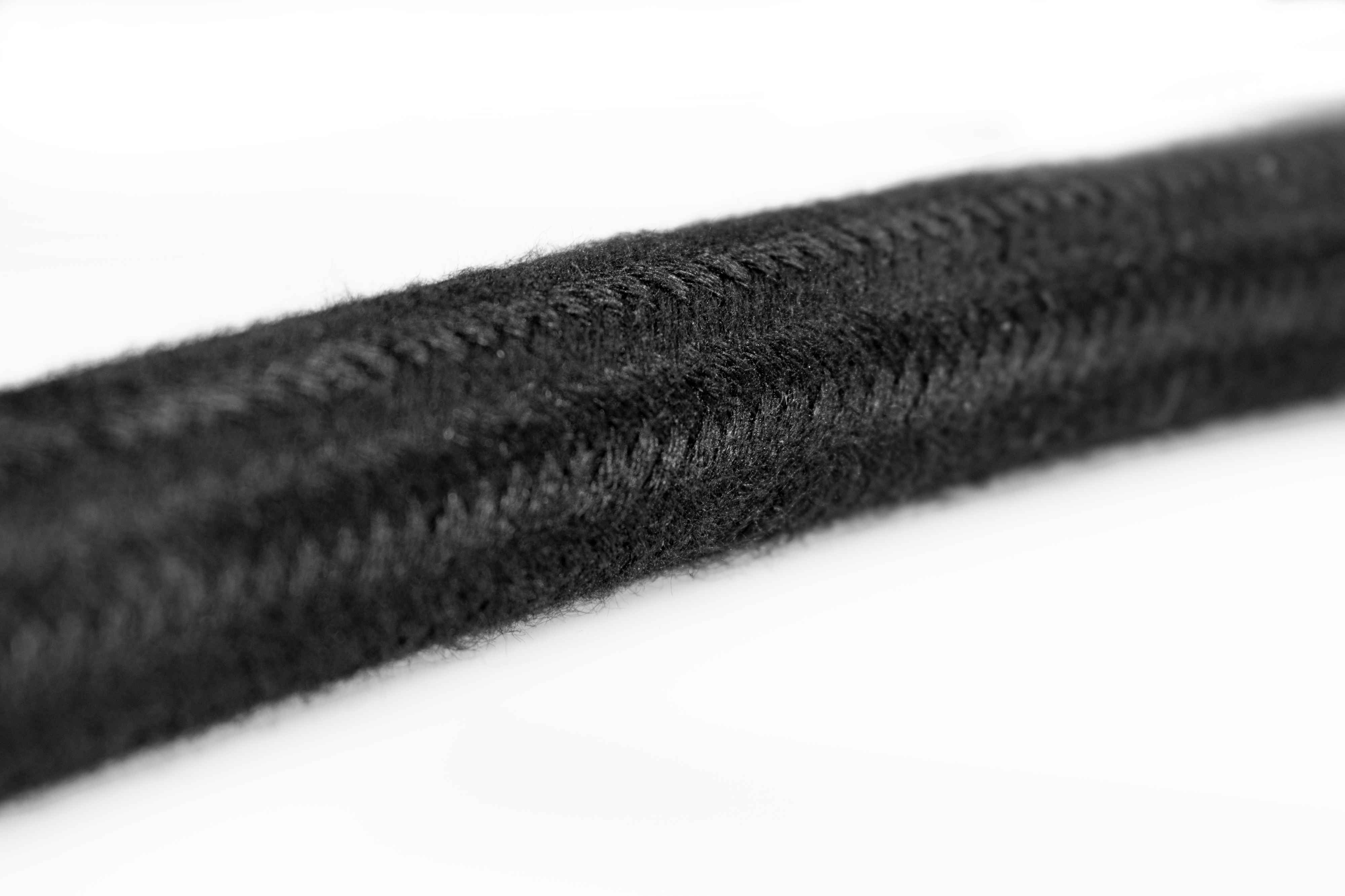

The hose is reinforced with a heat-resistant textile braid and finished with a CSM (chlorosulfonated polyethylene) cover. This specialized outer layer provides exceptional protection against oils, lubricants, and biodiesel, while remaining stable in temperatures ranging from -40°C to +90°C. The CSM material also ensures the hose remains durable against ozone exposure and harsh weather conditions.
Regulatory Compliance and Environmental Standards
This hose is manufactured to meet strict industry safety and environmental benchmarks, including ROHS, EPA, and CARB requirements (specifically 13CCR section 2754). Its low-permeation design actively minimizes fuel vapor loss, supporting cleaner operations and reduced emissions.
Versatile Industrial and Automotive Application
Compatible with high-grade fuels, coolant liquids, non-oxidizing liquid detergents, and fuels with up to 50% aromatic content, this hose is a versatile choice for both automotive and industrial fluid management.

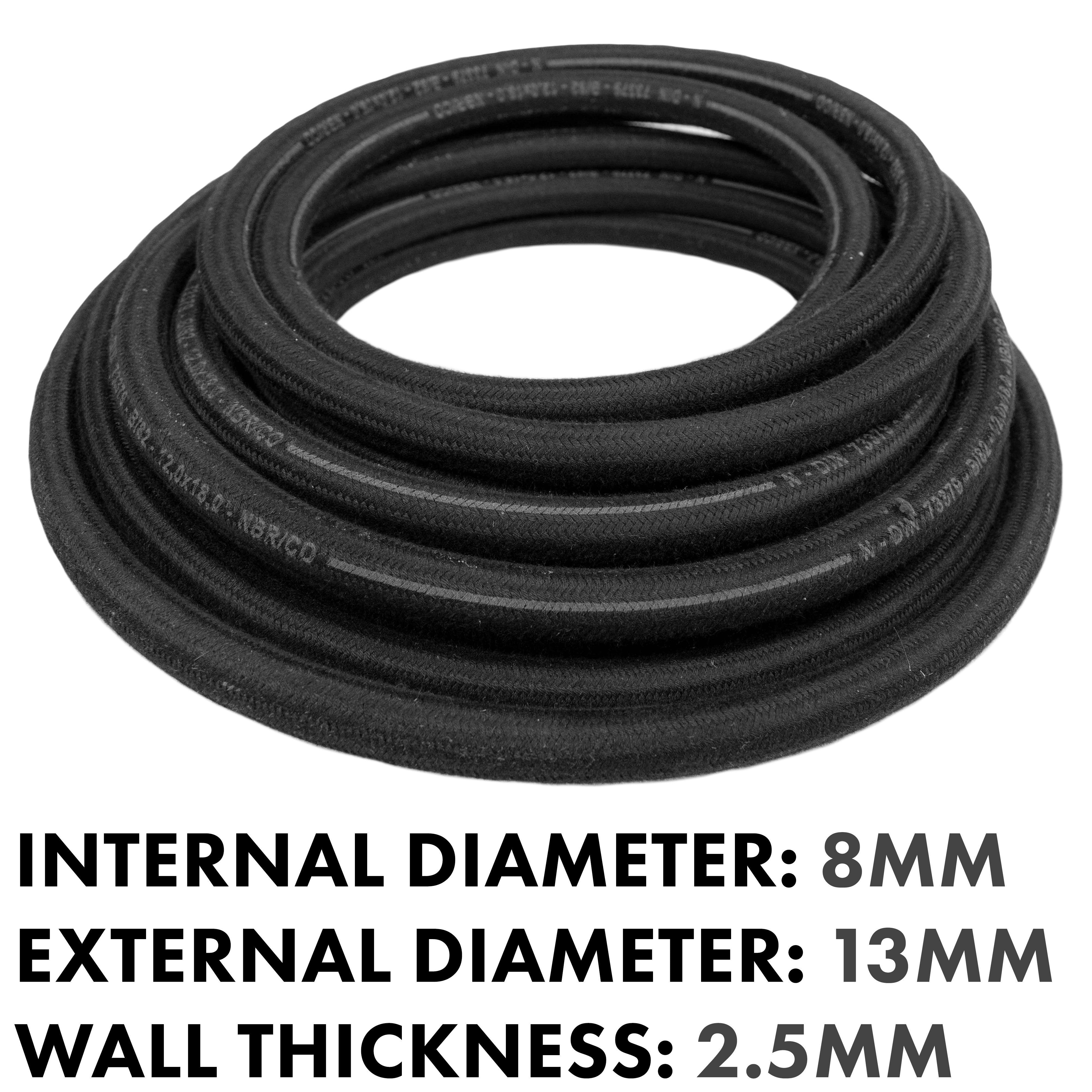

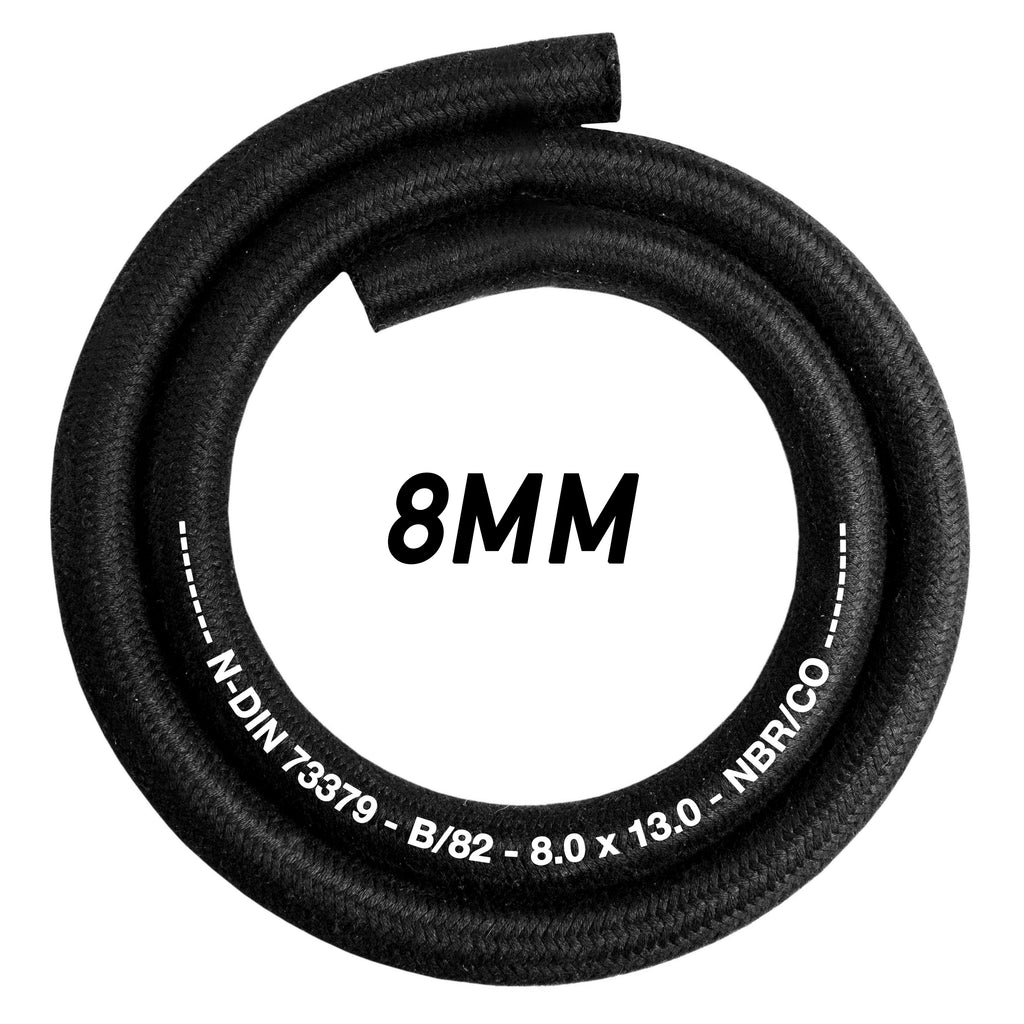

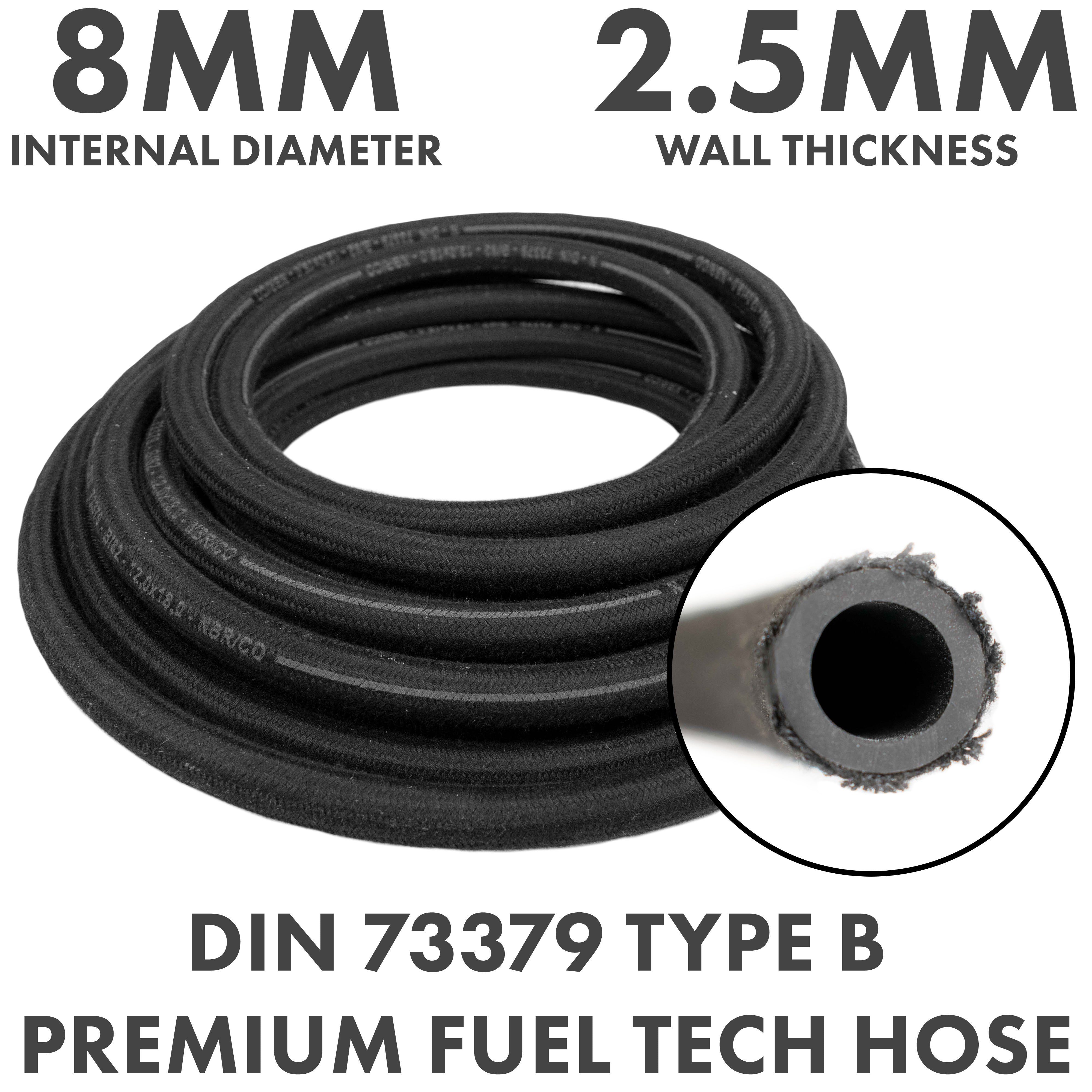

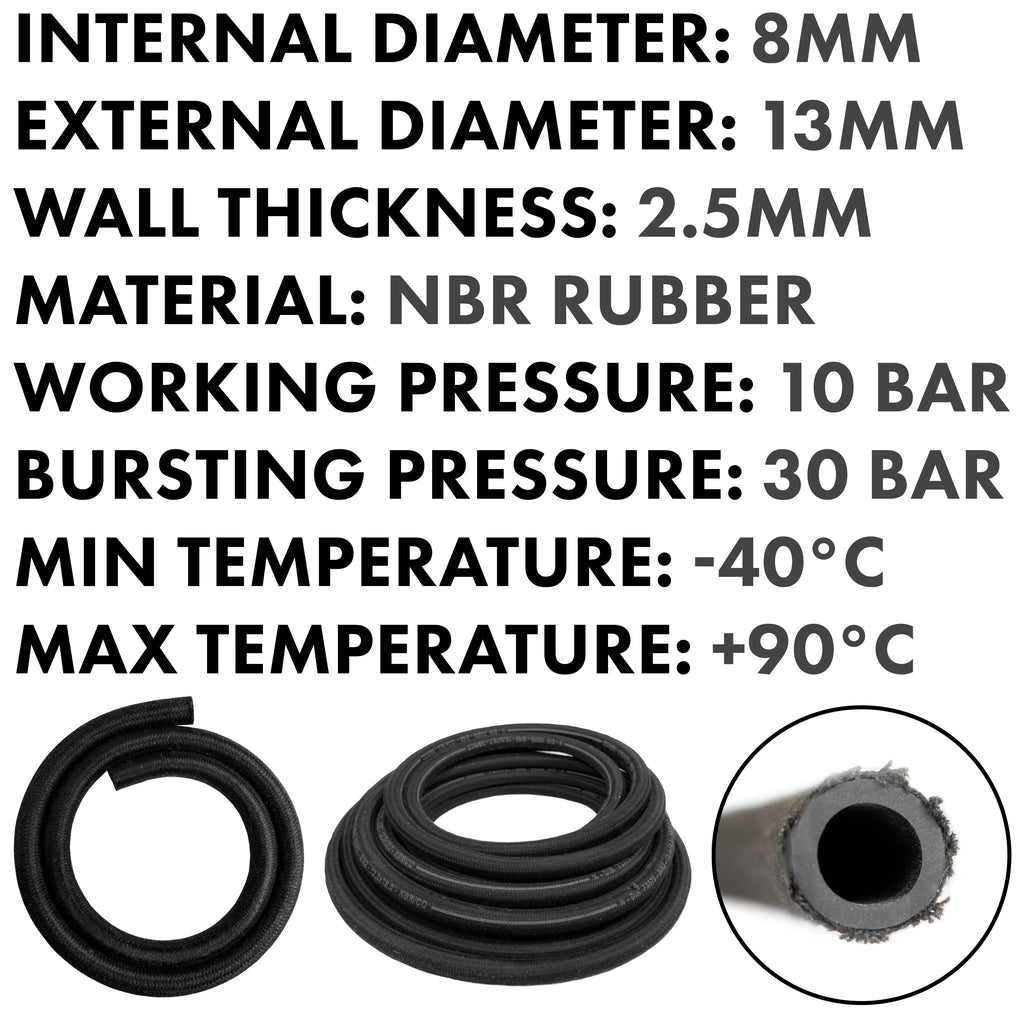

- Dimensions: 8mm internal diameter / 13mm external diameter
- Material: NBR core with CSM textile braided cover
- Temperature Range: -40°C to +90°C
- Pressure Rating: 10 bar working pressure / 30 bar burst pressure

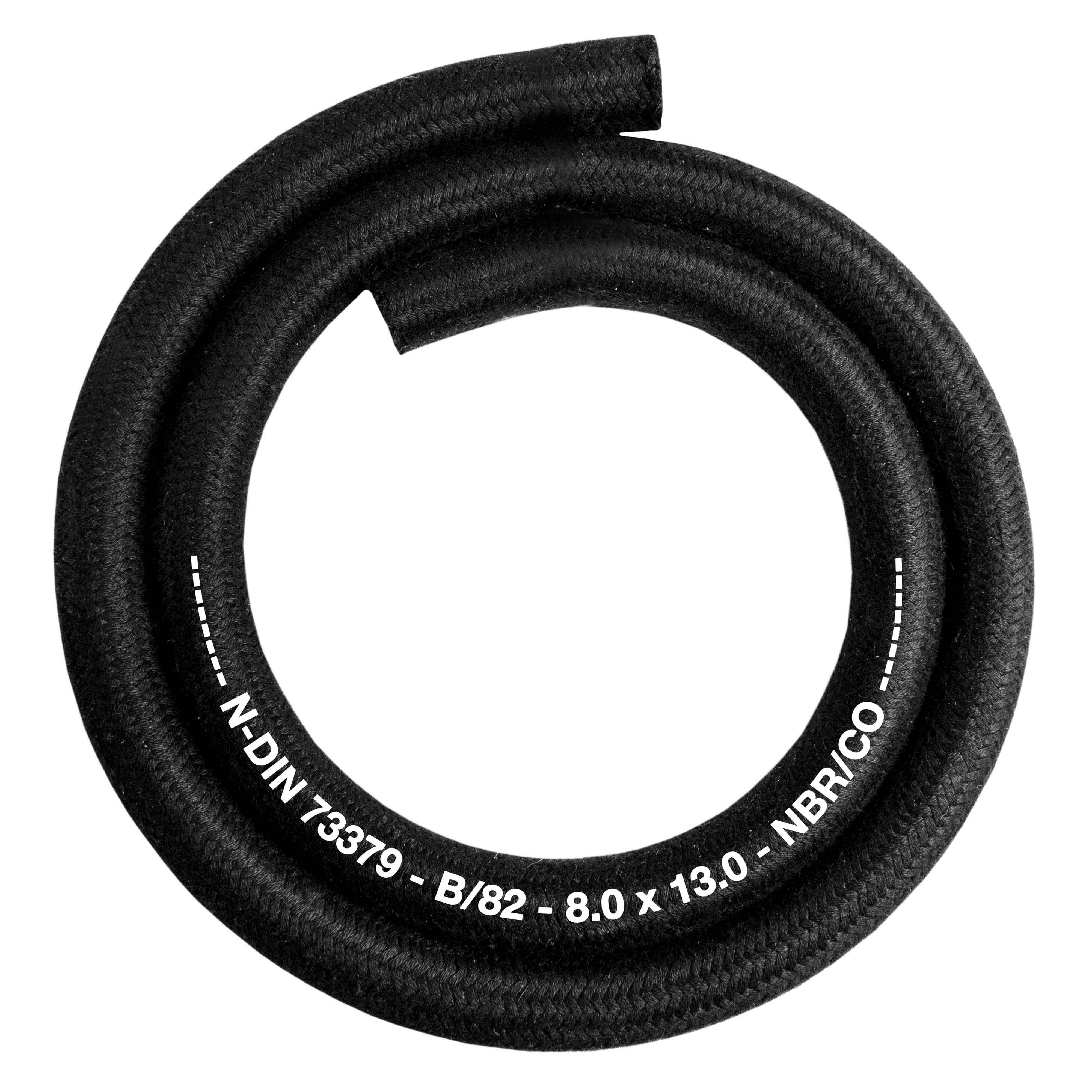

- Certifications: DIN 73379 Type B, ROHS, EPA, CARB (13CCR 2754)
Important Usage Notes: While this hose is compatible with mineral oil-based power steering fluids, please verify the working pressure of your specific power steering system before installation. This product is not suitable for use in braking systems.
For detailed technical data, please refer to the ‘Specifications’ tab. Contact us directly for information regarding optimized packaging and unit capacity for shipping.
