Description
SKU: F-STYL-100WCP-KIT-GRAPHITE-001

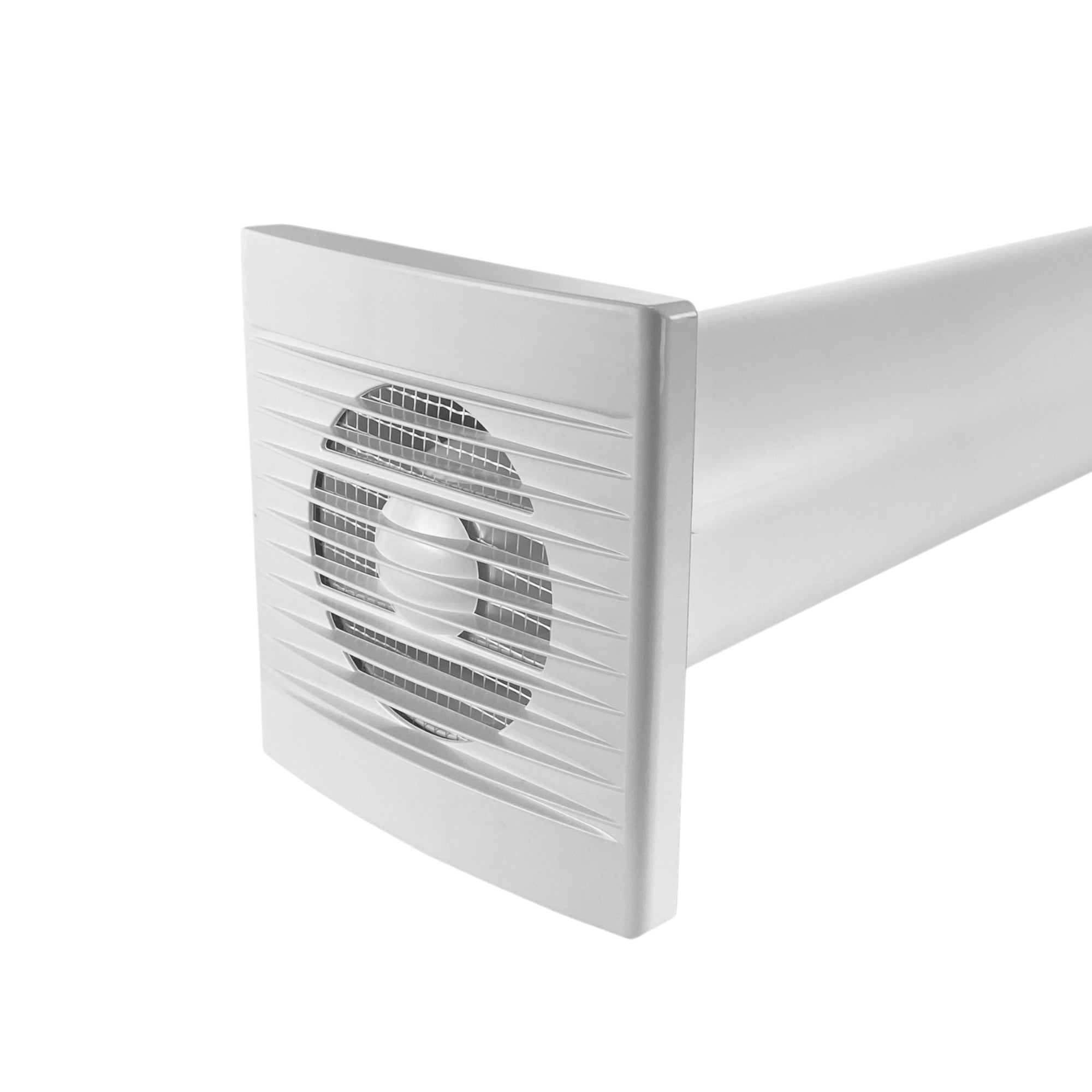

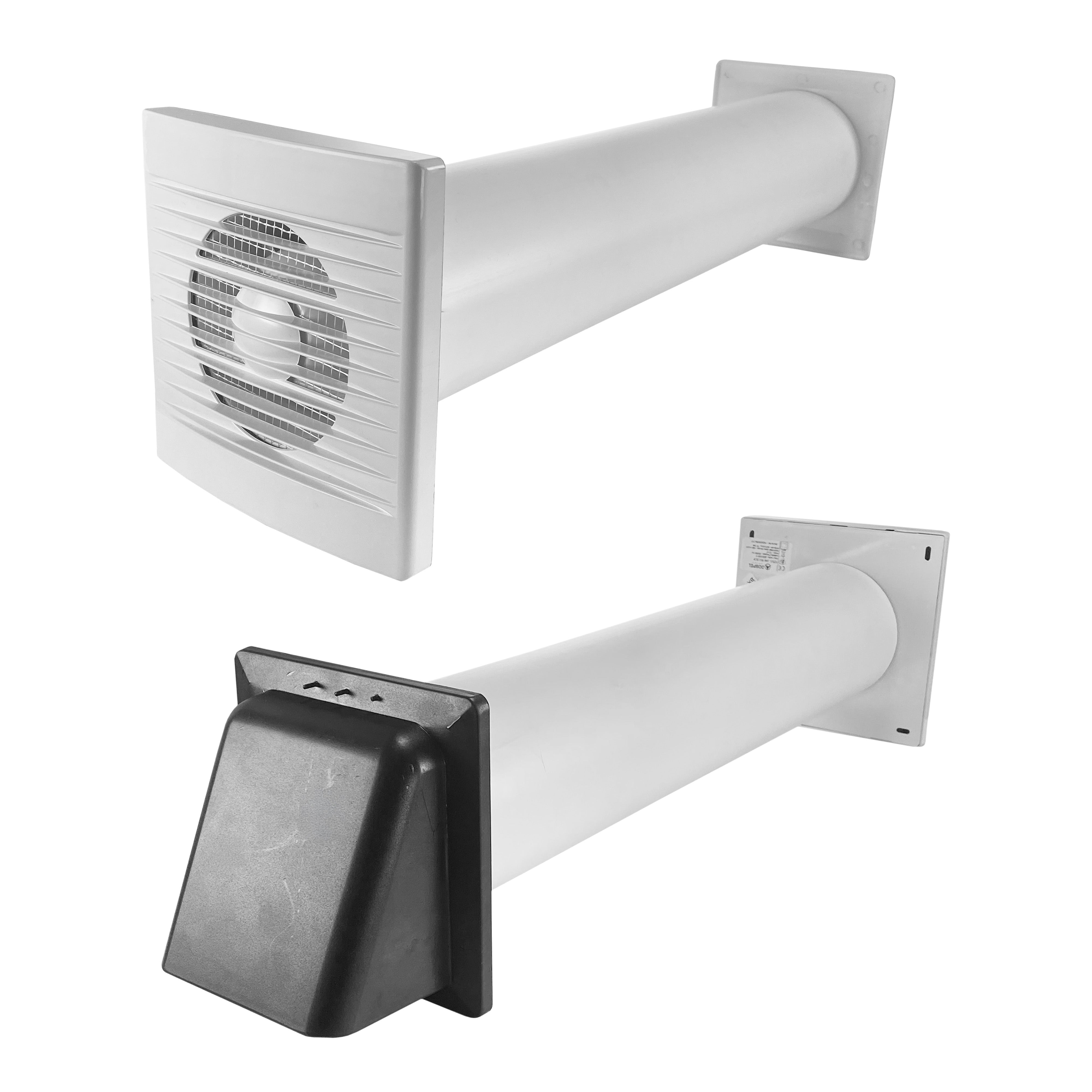

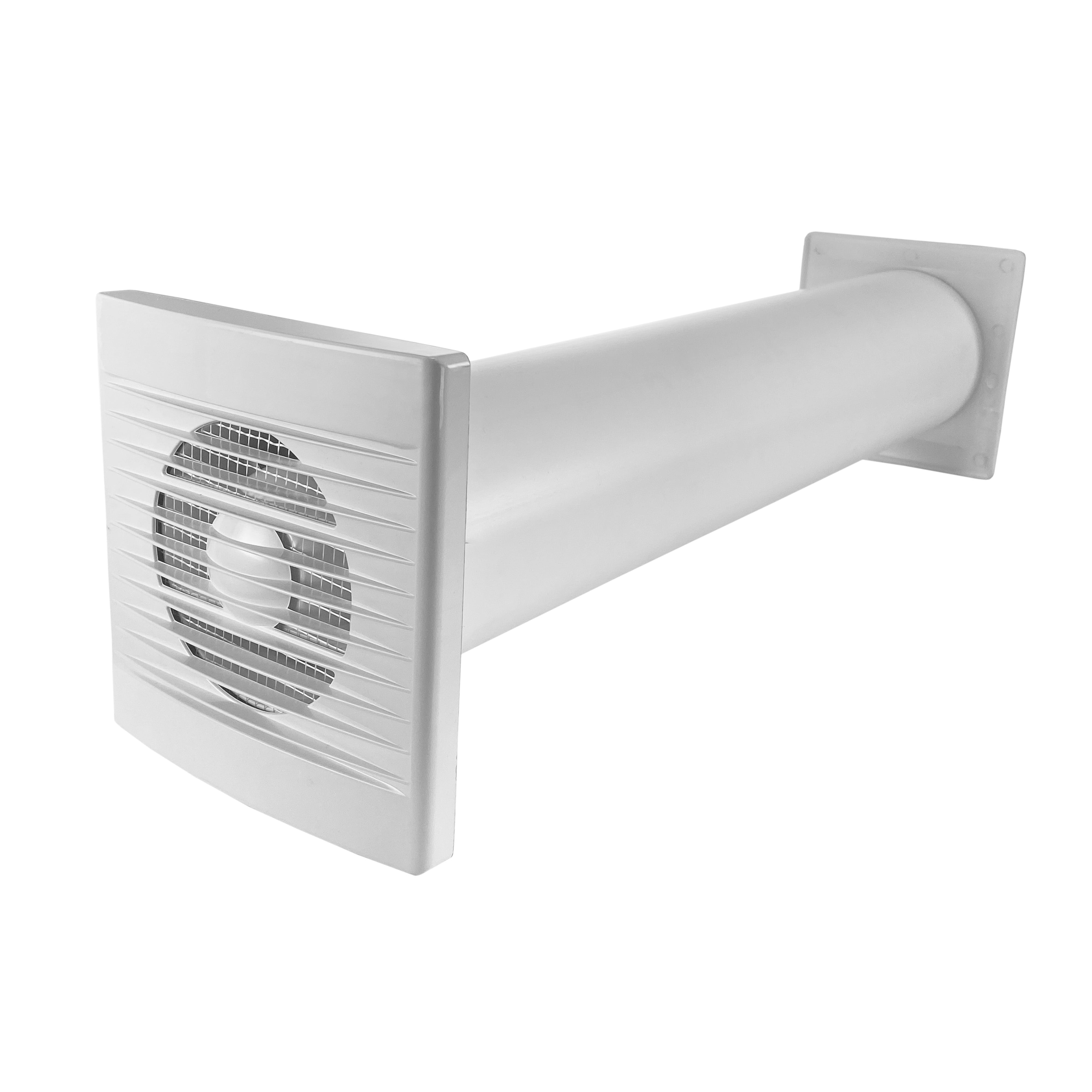

Complete Through-Wall Ventilation Solution
Upgrade your indoor air quality with this all-in-one ventilation kit. Designed for straightforward installation, this set provides everything needed for effective air extraction in bathrooms, kitchens, and utility areas.

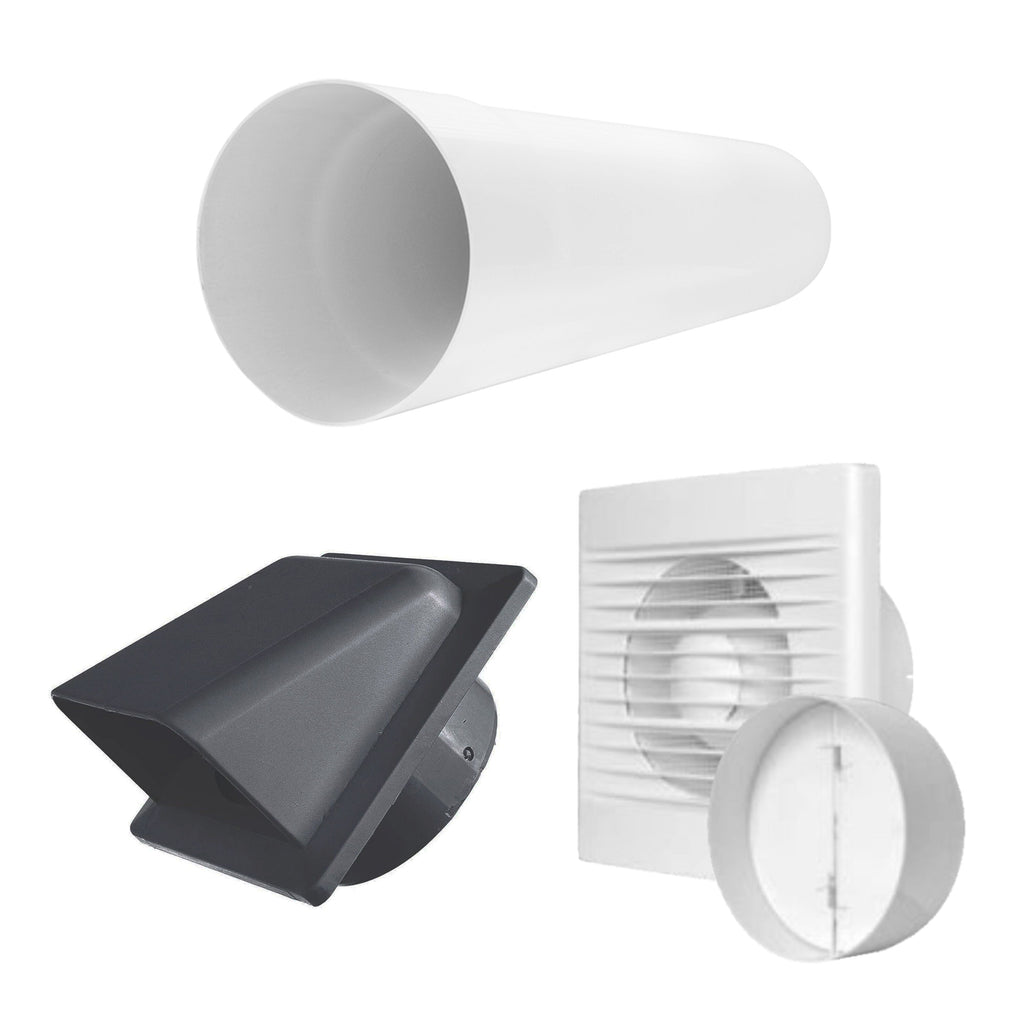

Kit Includes:
- 1 x Styl Fan with Timer (F-STYL-100WCP) - 100mm
- 1 x Rigid PVC Vent Duct Pipe (V-P100R50CM) - 50cm
- 1 x External Hooded Graphite Louvre Vent (VC-KRD4358-100-GRAPHITE)

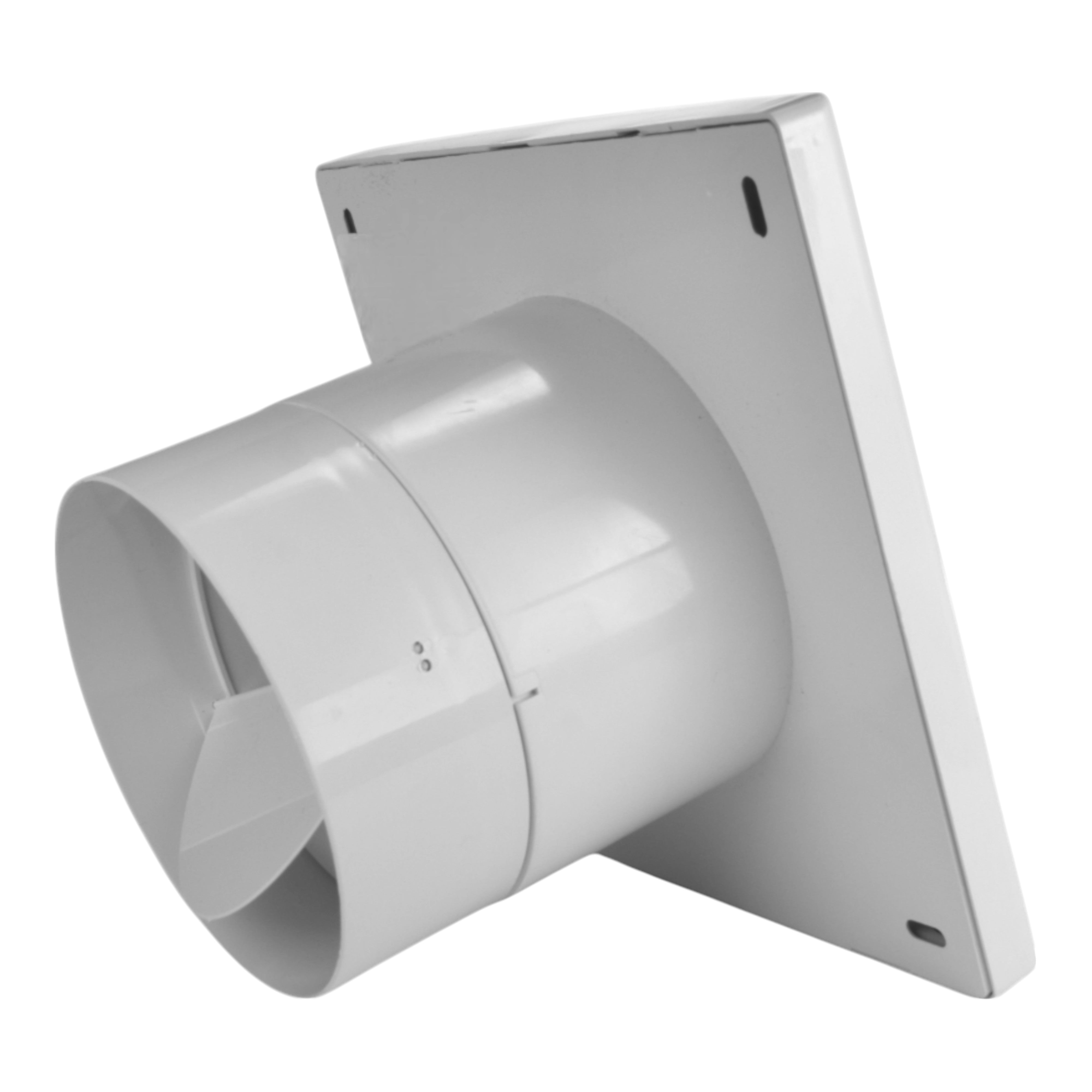

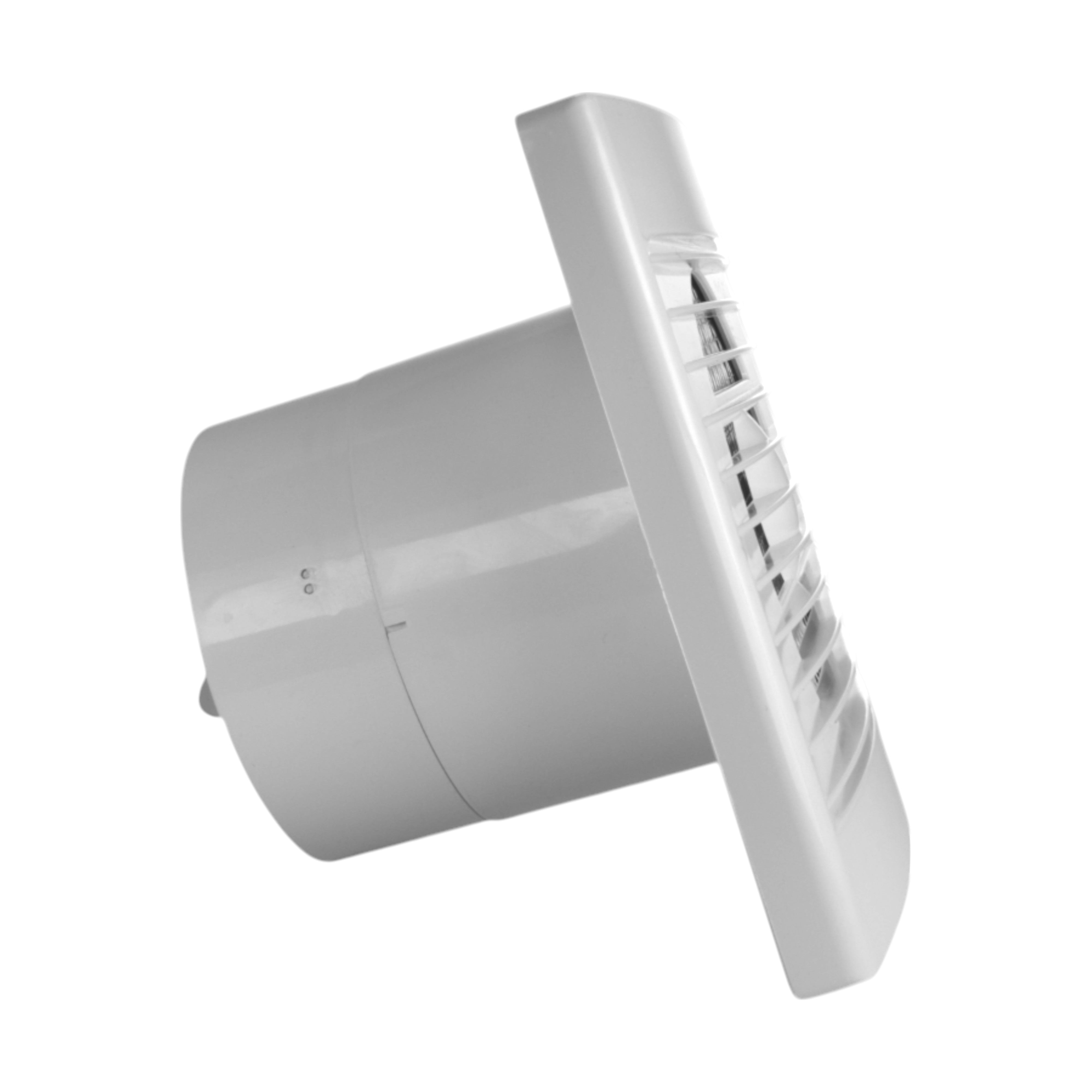

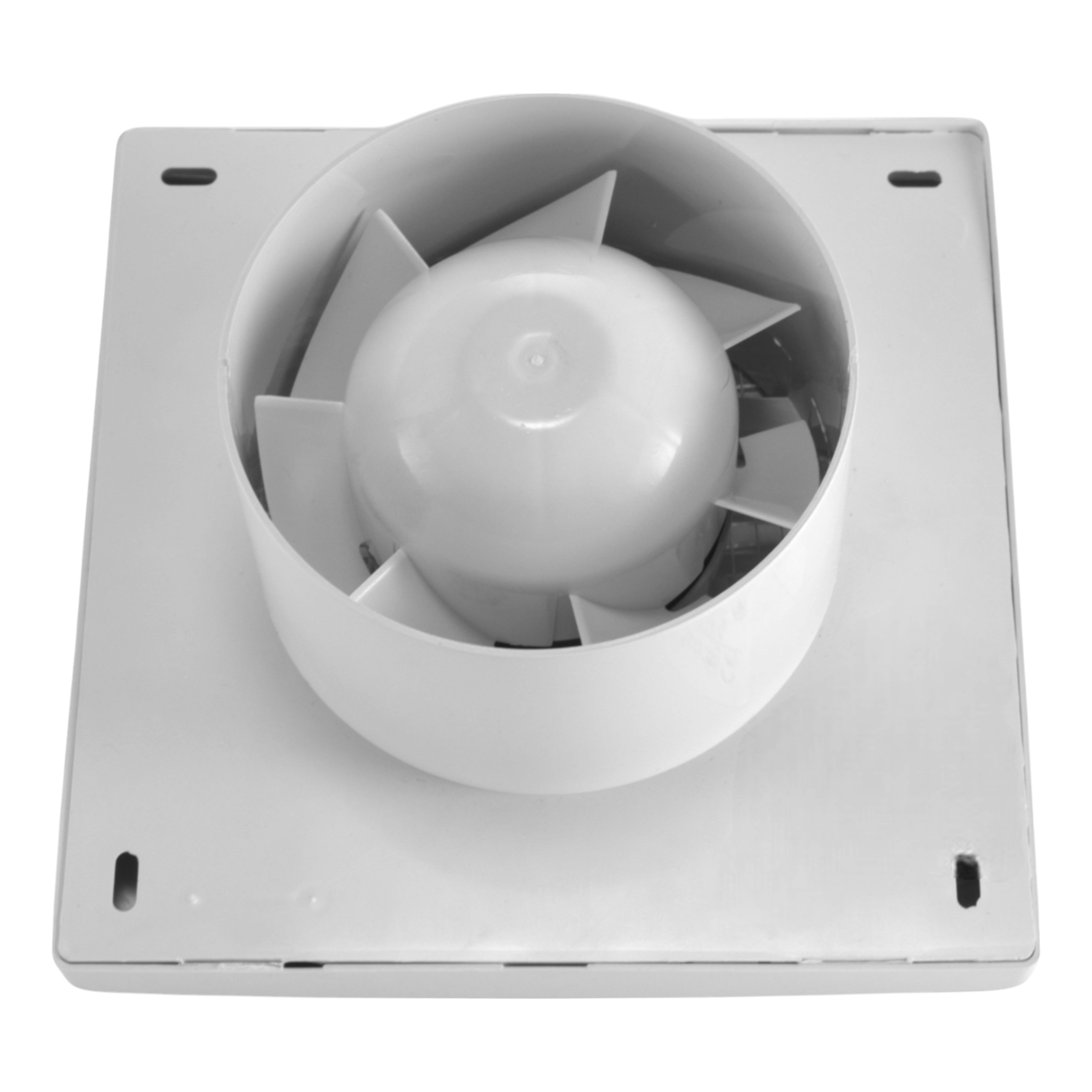

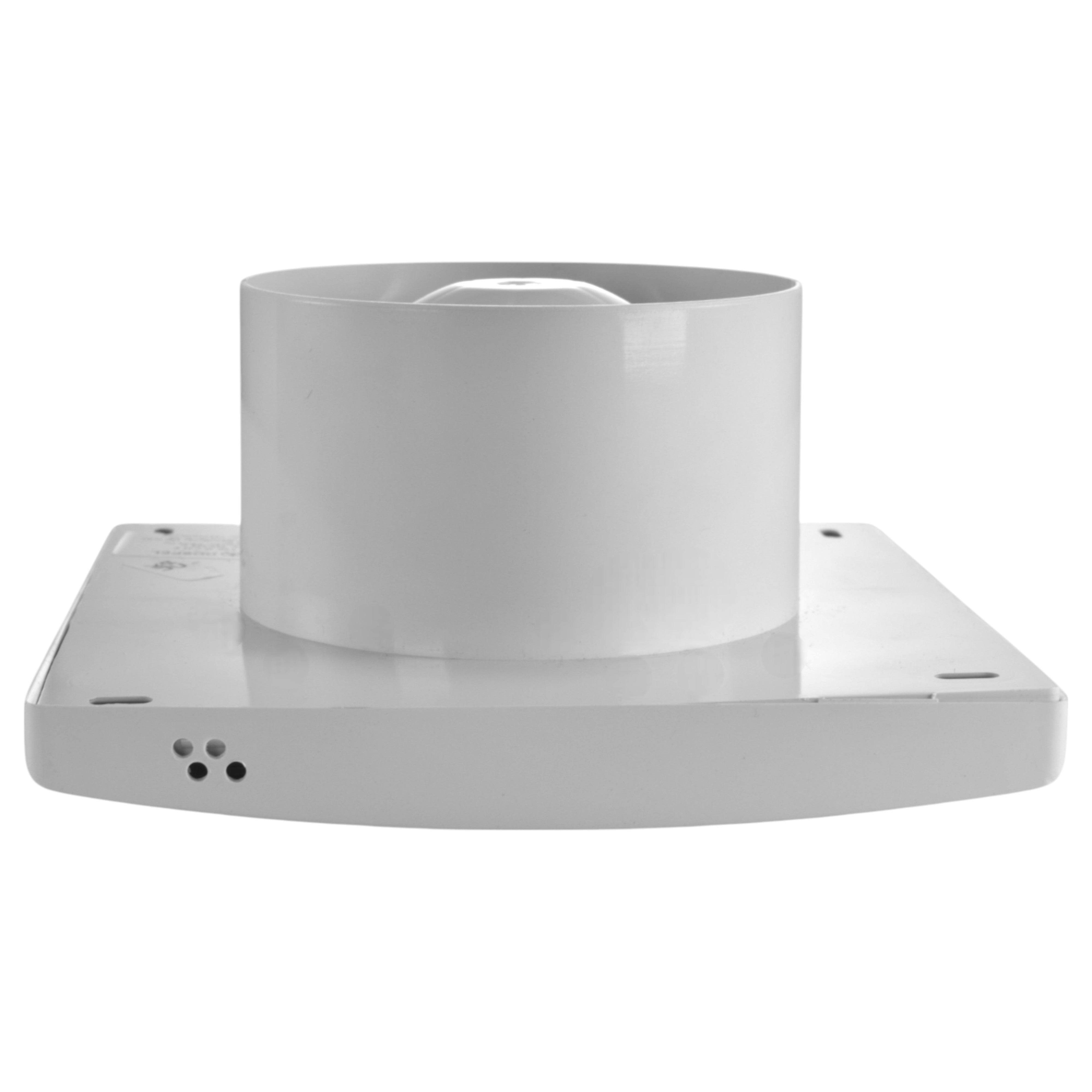

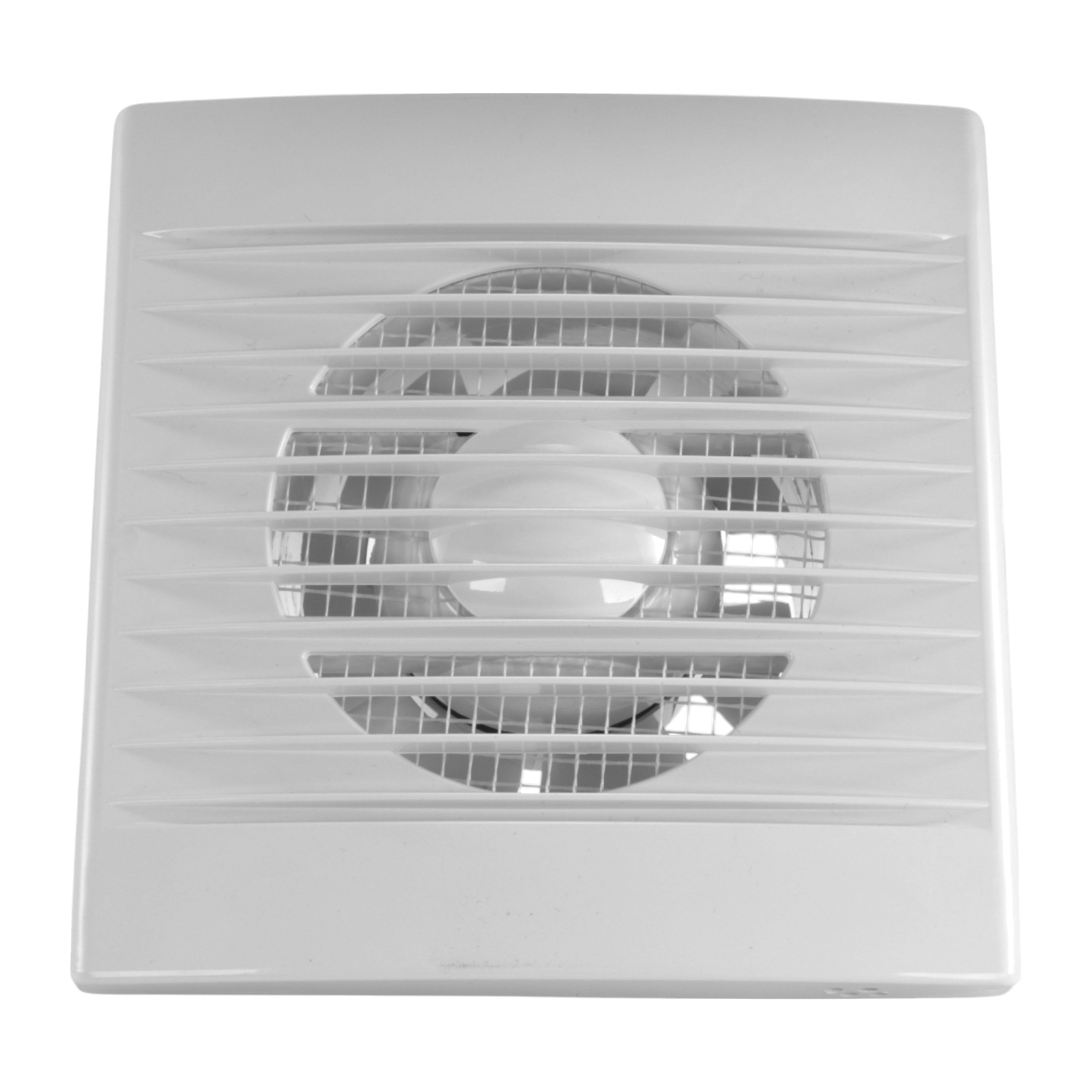

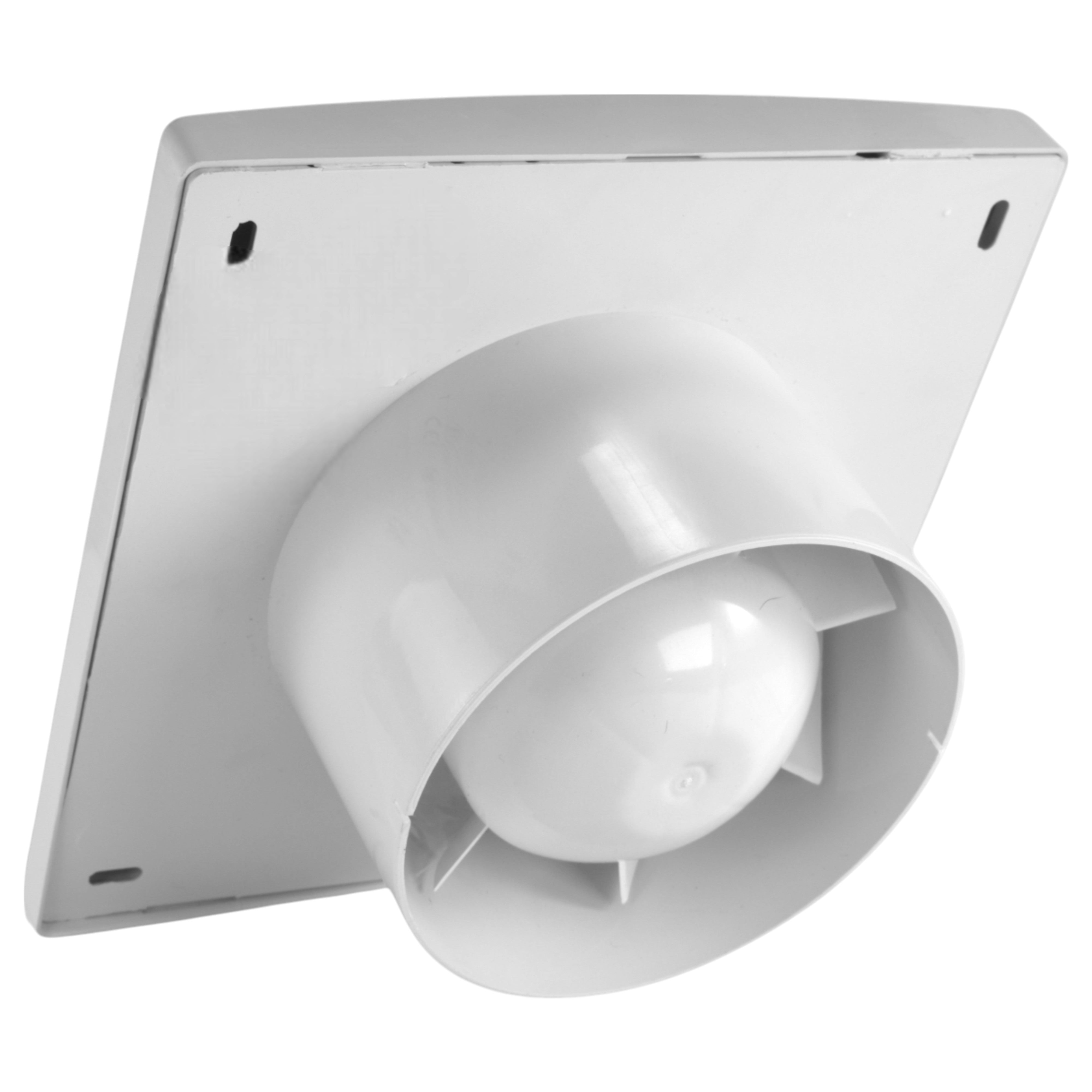

STYL Axial Wall Fan (F-STYL-100WCP)

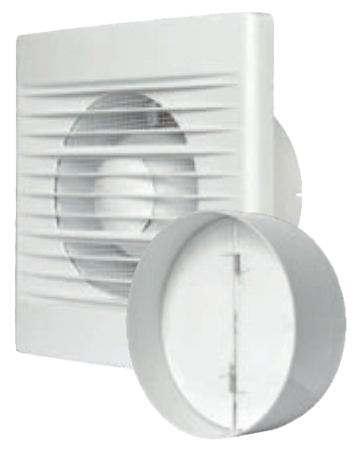

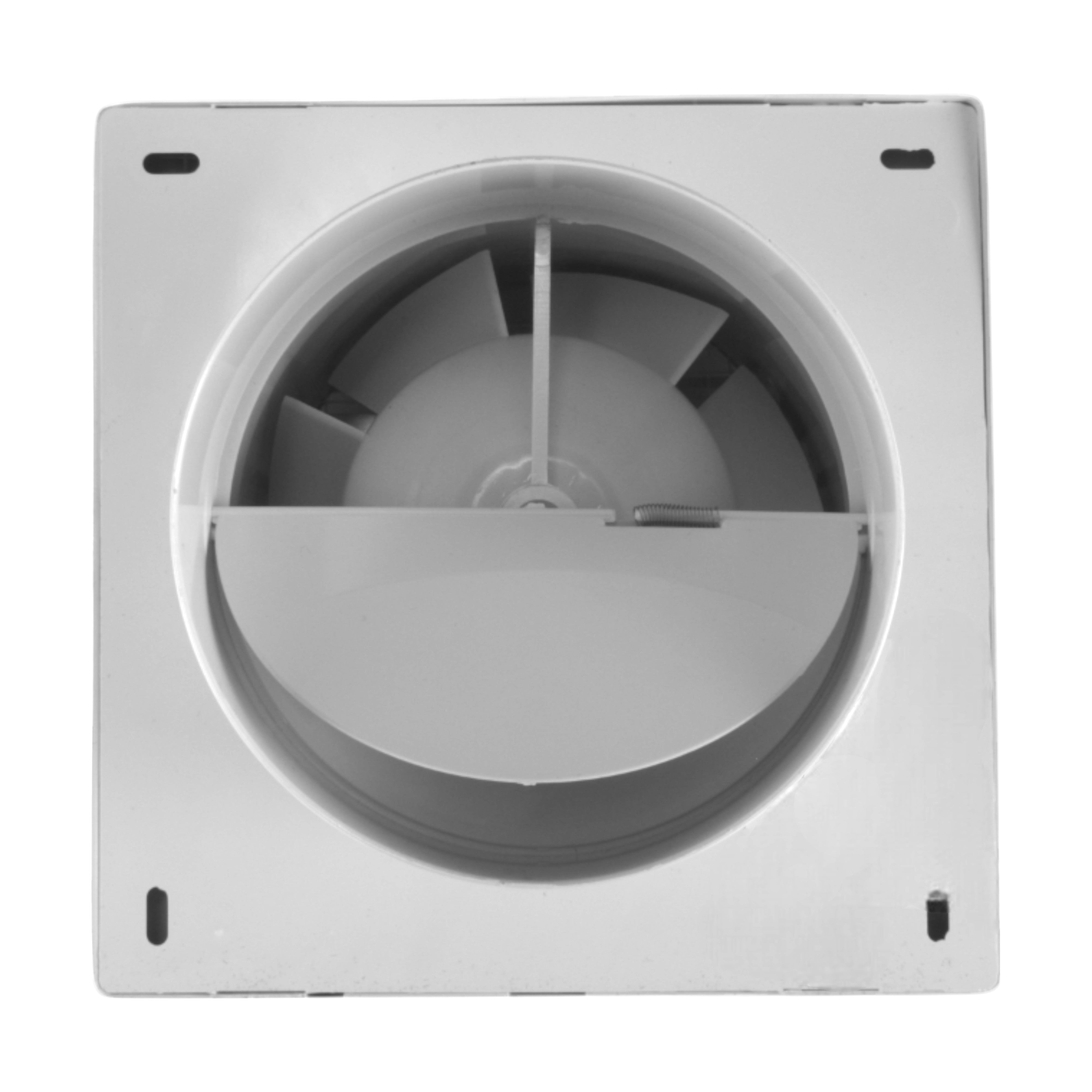

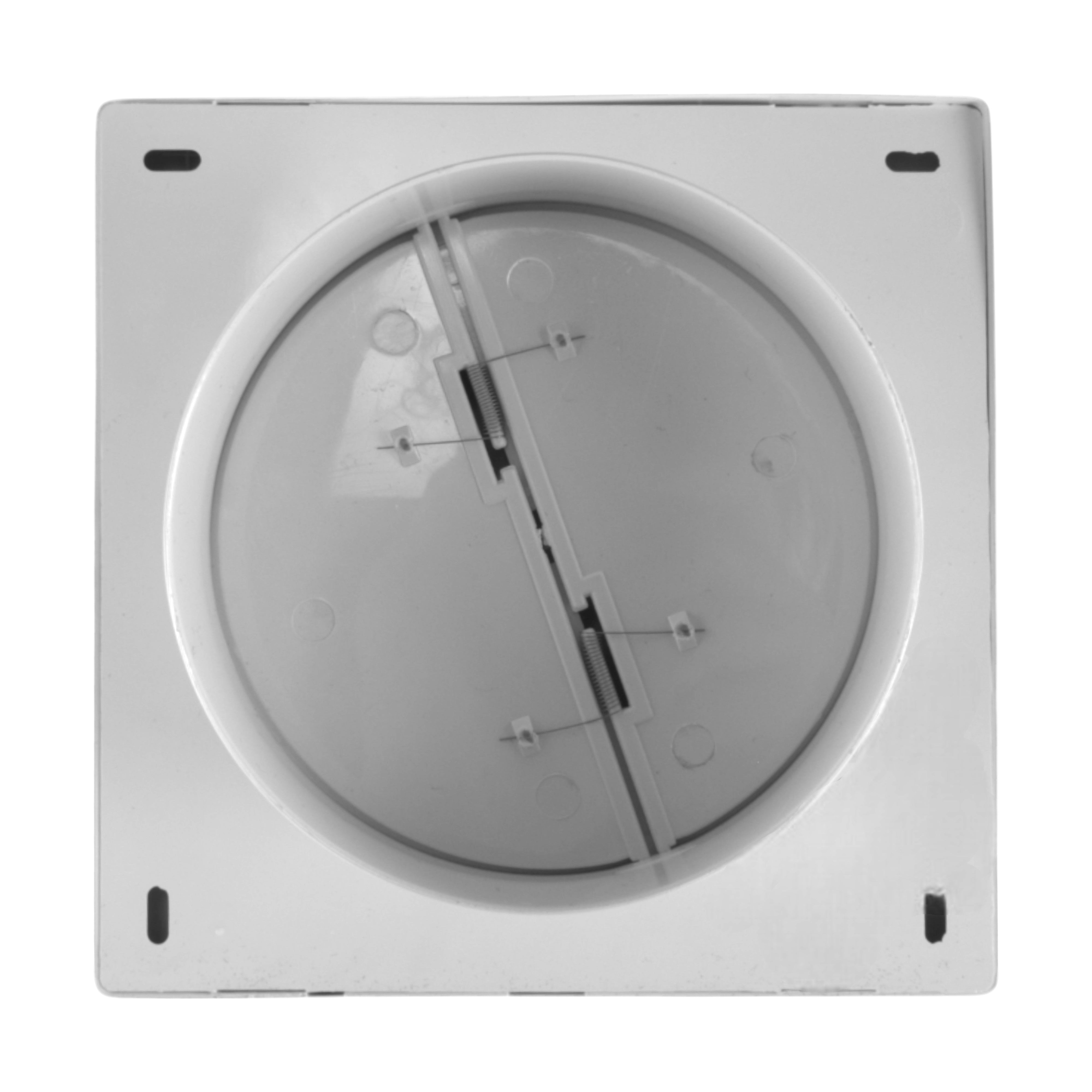

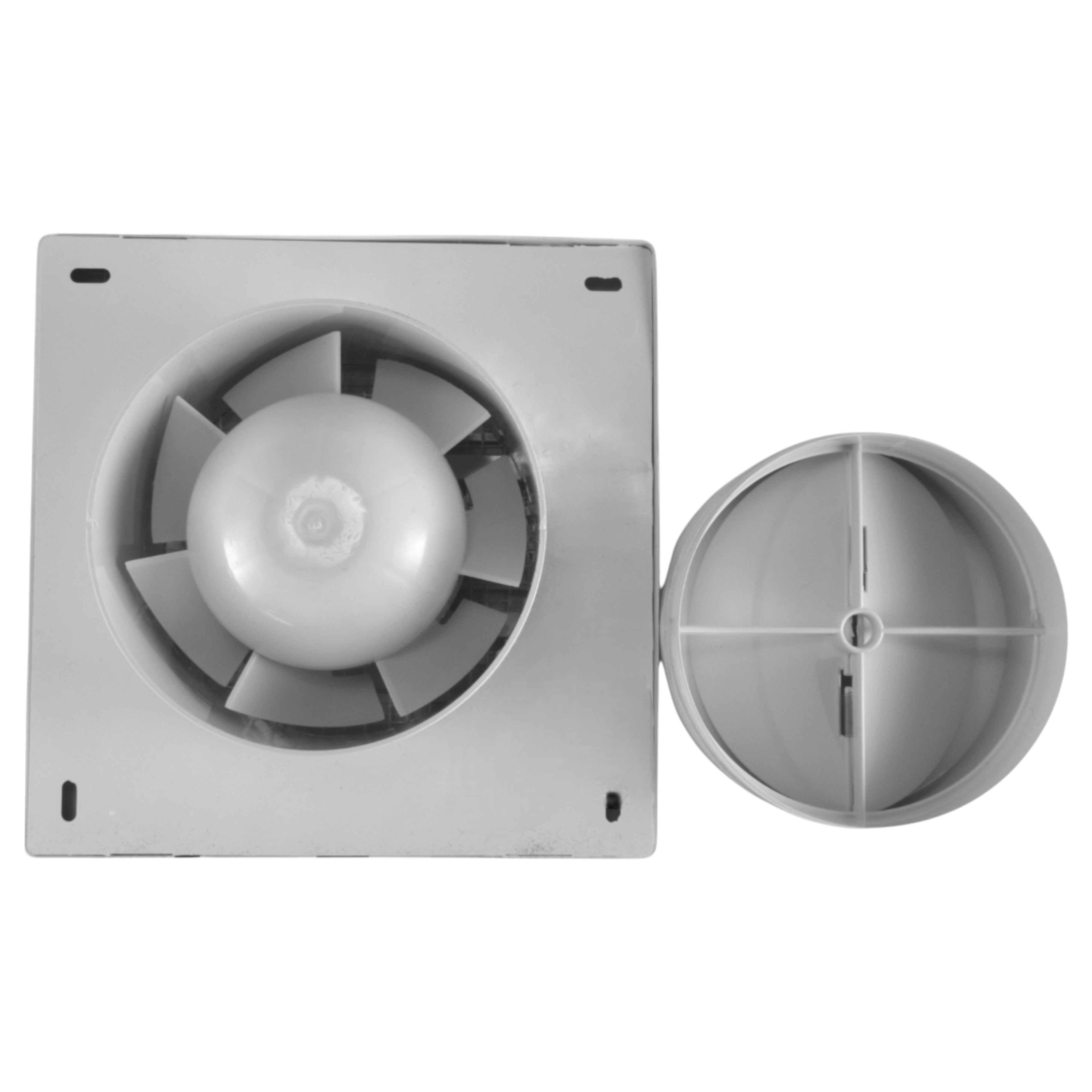

This compact axial fan is engineered for efficient, one-way airflow. Built from durable ABS plastic, it features an integrated damper to prevent backflow and keep insects out. With a 15W motor, it achieves an airflow rate of 100 m³/h and a static pressure of 34 Pa (3.47 mm H₂O).
- Performance: 2650 rpm motor speed with a quiet 40 dB(A) acoustic pressure.
- Electrical: 230 V/50 Hz power supply; 0.12 A current consumption.
- Safety: Insulation class II; maximum operating temperature of 40°C.
Rigid PVC Ducting (V-P100R50CM)
Ensure a protected air path through your wall with this 50cm rigid round PVC pipe. It shields your ventilation system from dust, debris, and cavity insulation. The durable plastic construction is easy to trim to your specific requirements using a standard hand saw.

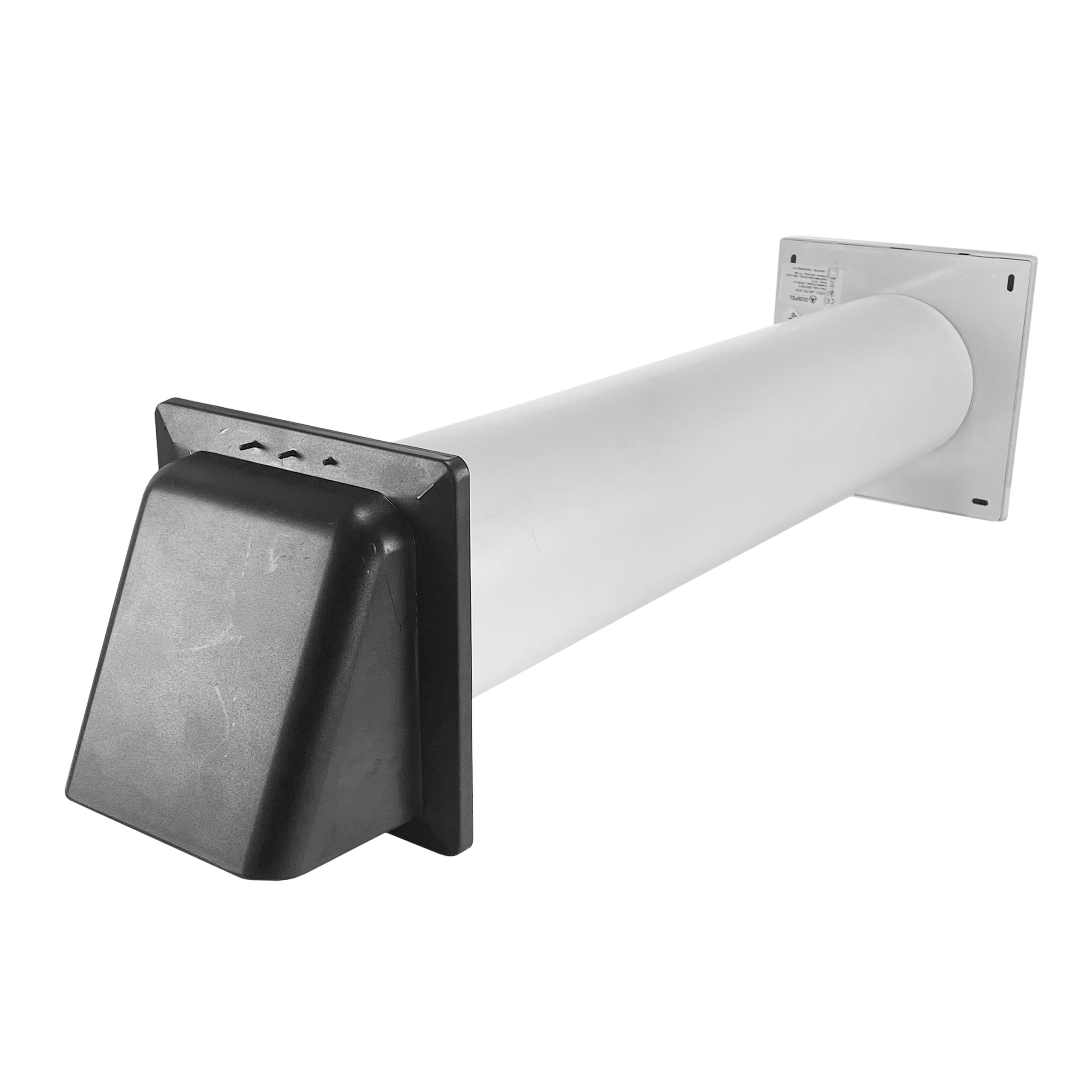

External Hooded Graphite Louvre Vent (VC-KRD4358-100-GRAPHITE)
This high-performance external grille features a built-in damper for precise airflow management. The hooded louvre design is specifically crafted to deflect rainwater and prevent debris from entering the ducting.
- Material: Constructed from robust ABS (Acrylonitrile Butadiene Styrene) for superior resistance to weathering, chemical corrosion, and impact.
- Durability: Designed for long-term outdoor exposure with minimal maintenance requirements.
