Description
SKU: F-STYL-100WCP-KIT-WHITE-001

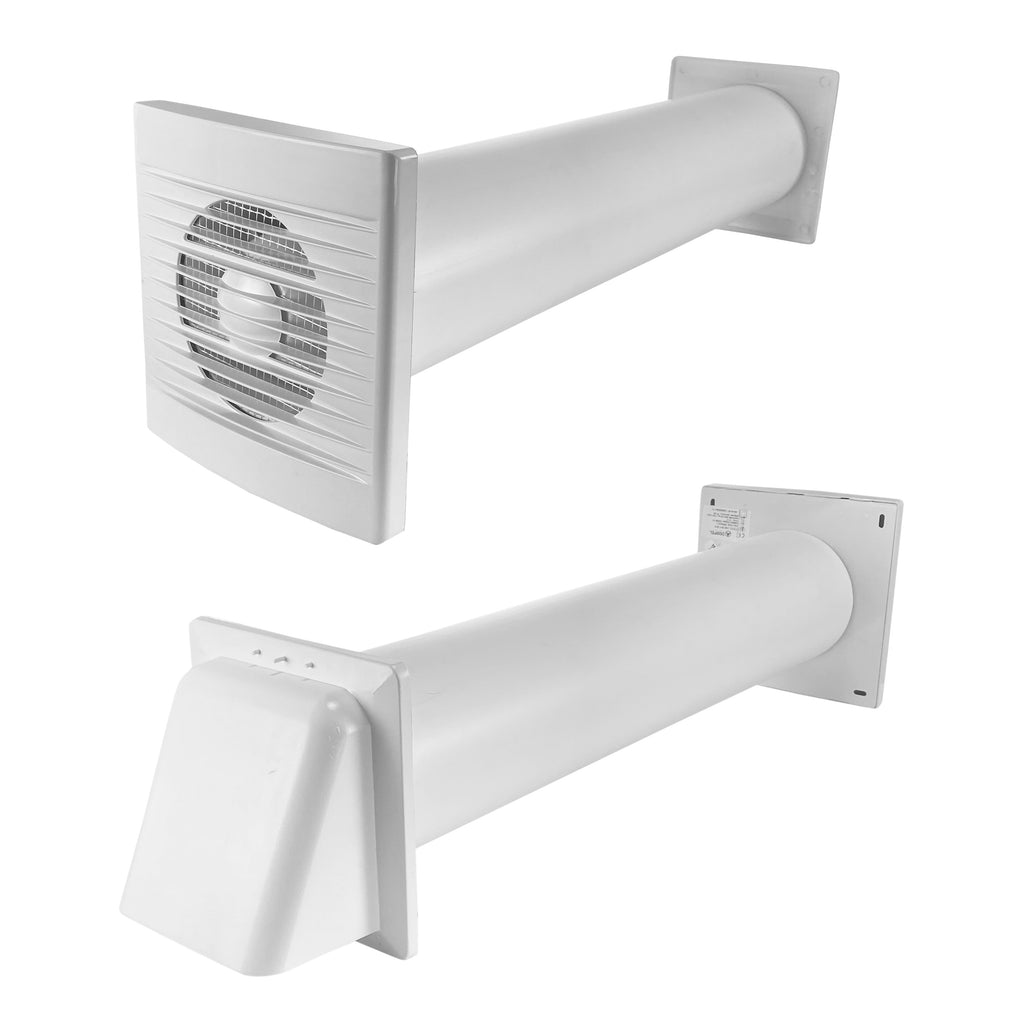

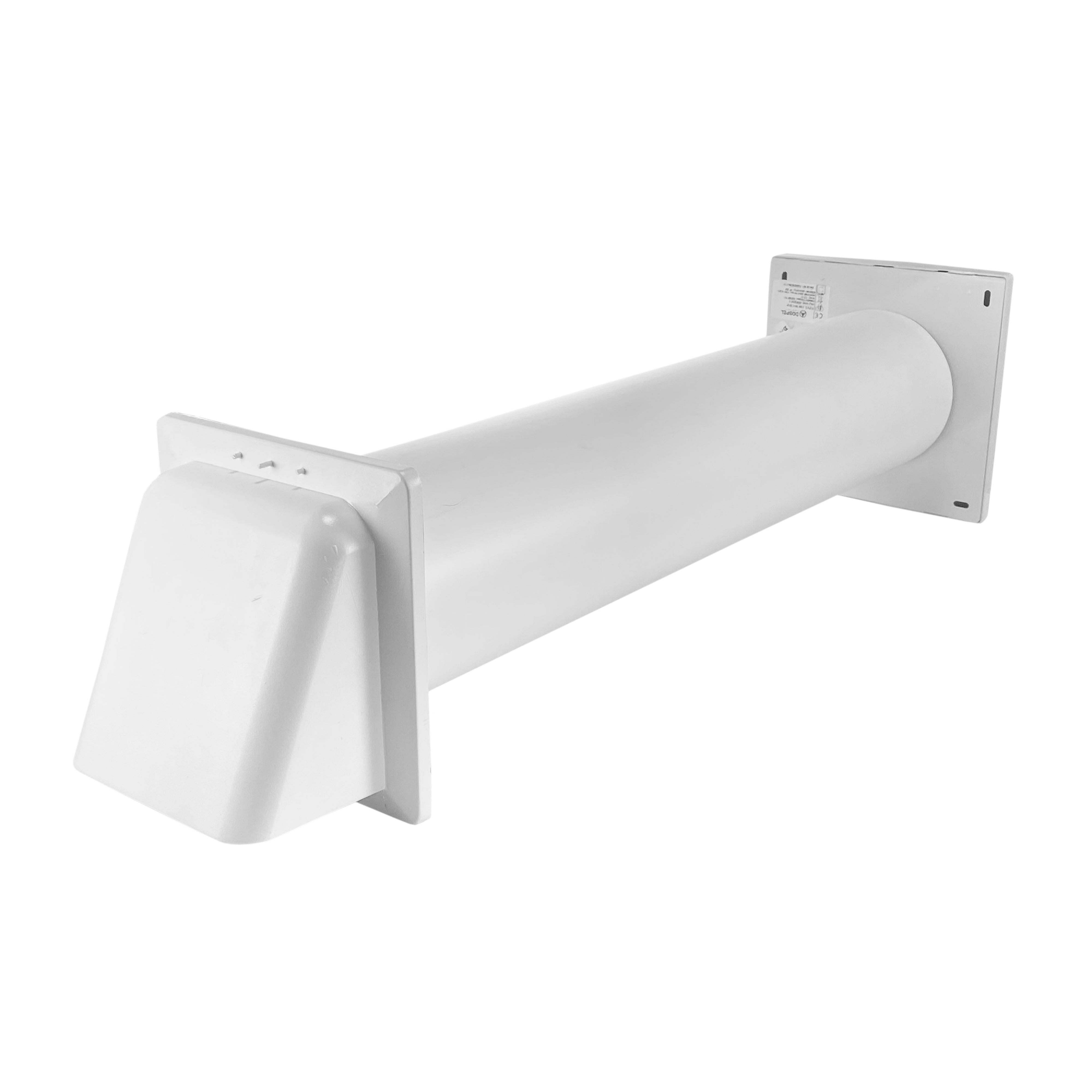

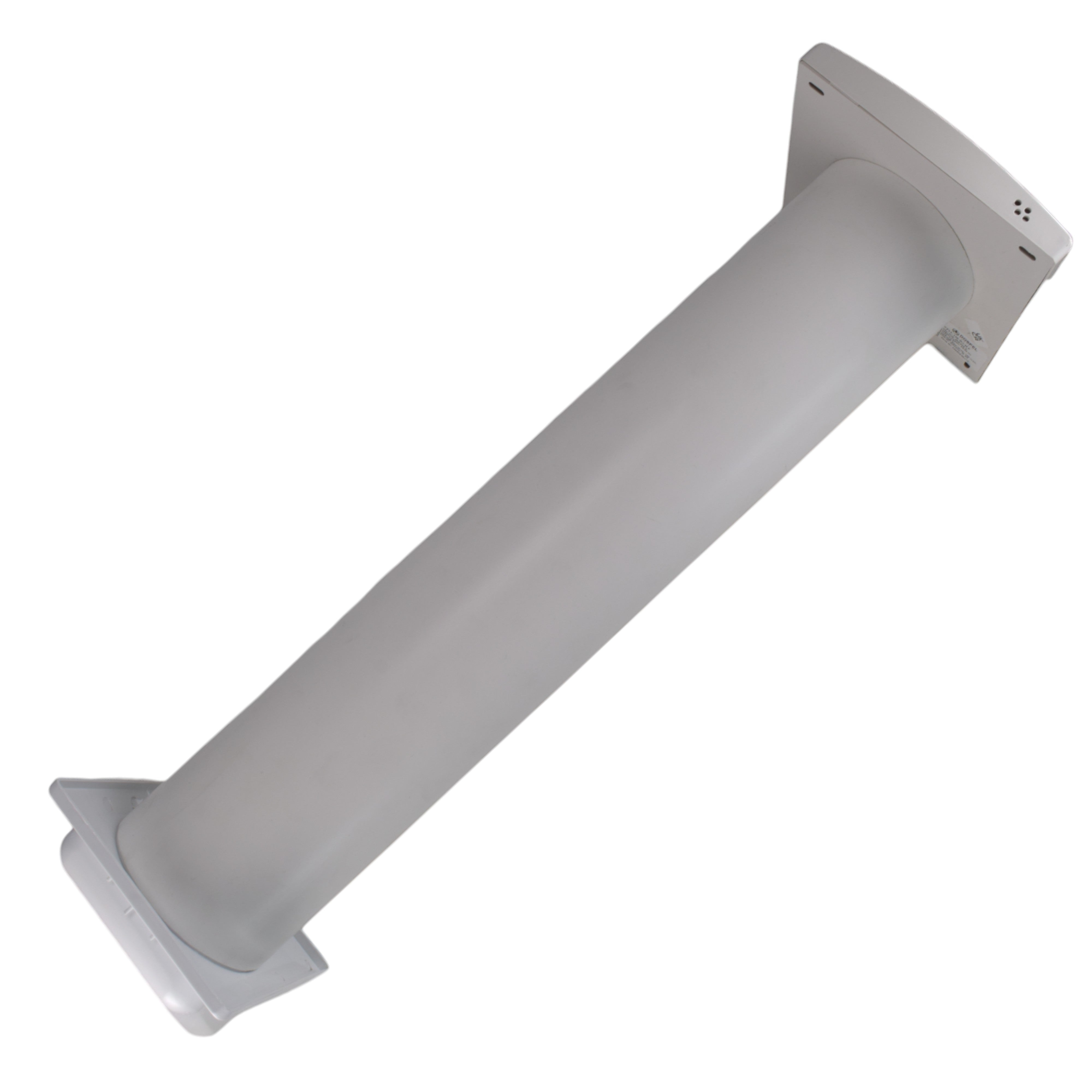

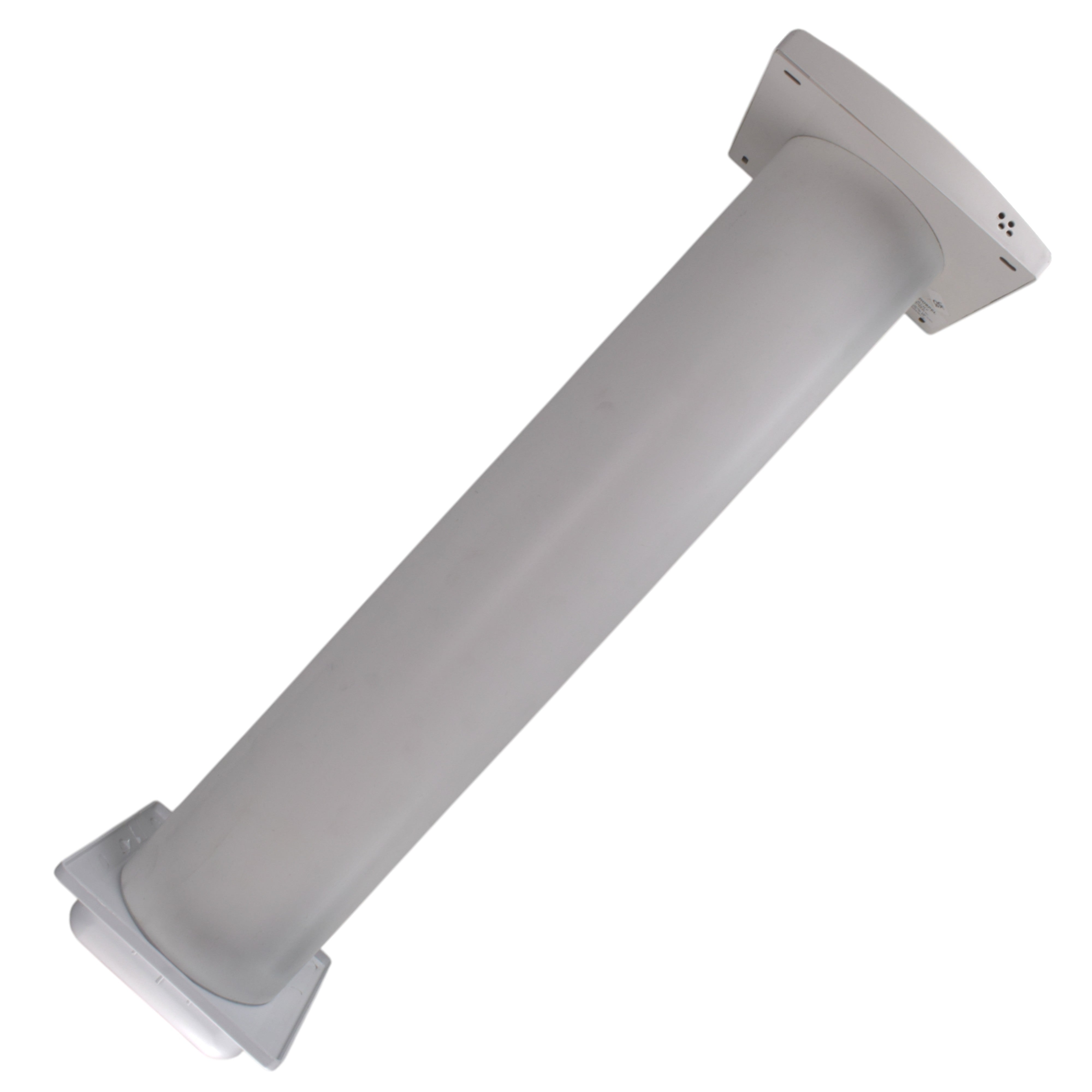

Complete Through-Wall Ventilation Solution

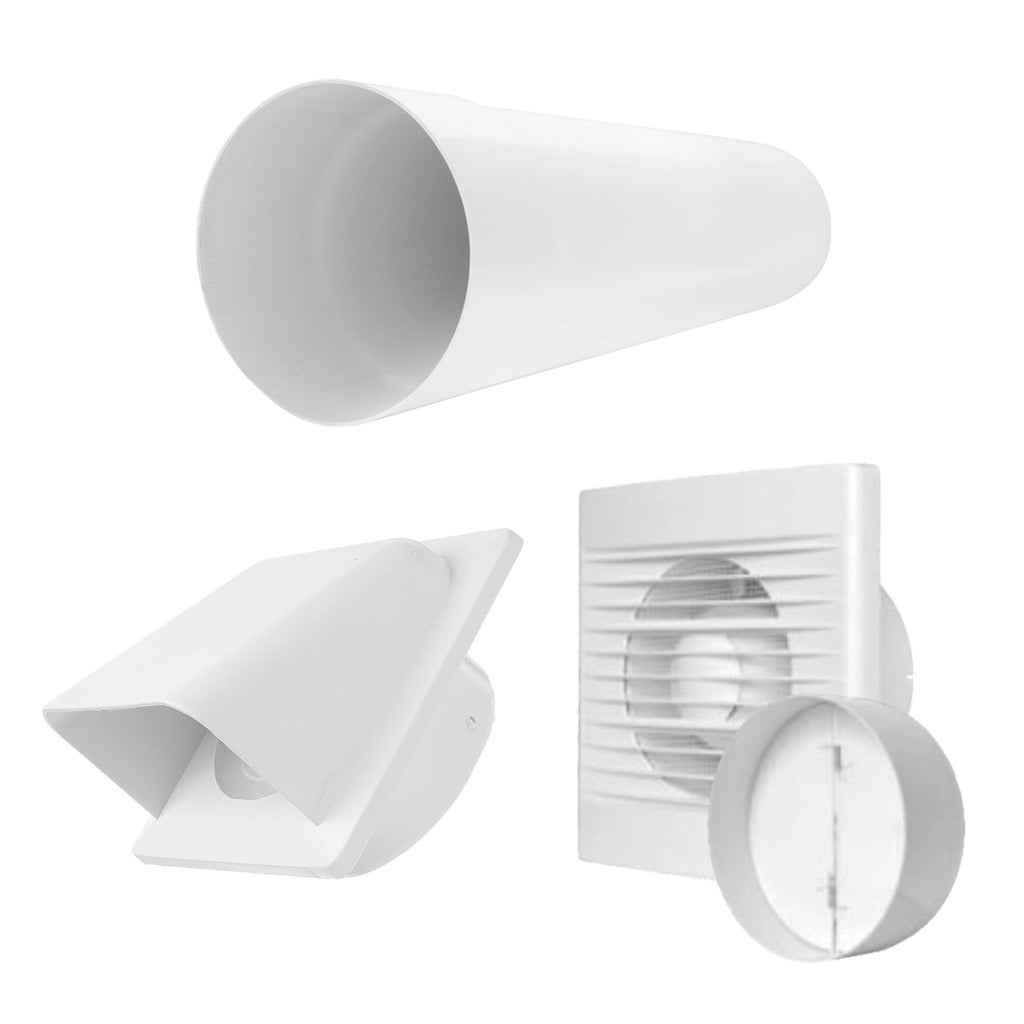

This all-in-one kit provides everything required for a professional-grade wall ventilation installation:
- 1 x Styl Fan with Timer (F-STYL-100WCP): A high-performance 100mm axial fan.
- 1 x Rigid PVC Vent Duct Pipe (V-P100R50CM): A 50cm length for secure wall penetration.
- 1 x External Hooded White Louvre Vent (VC-KRD0201-100-W): A durable, weather-resistant external finish.

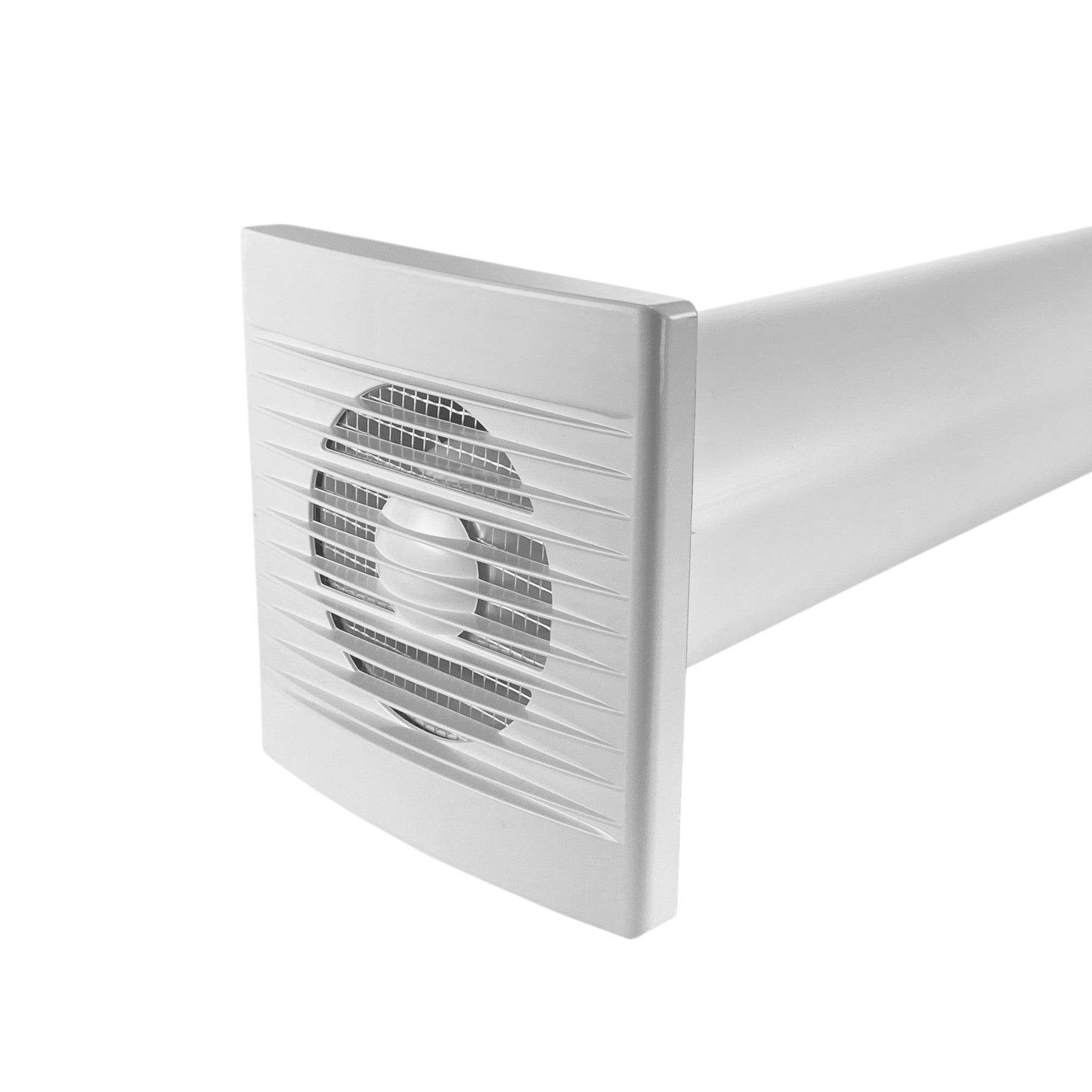

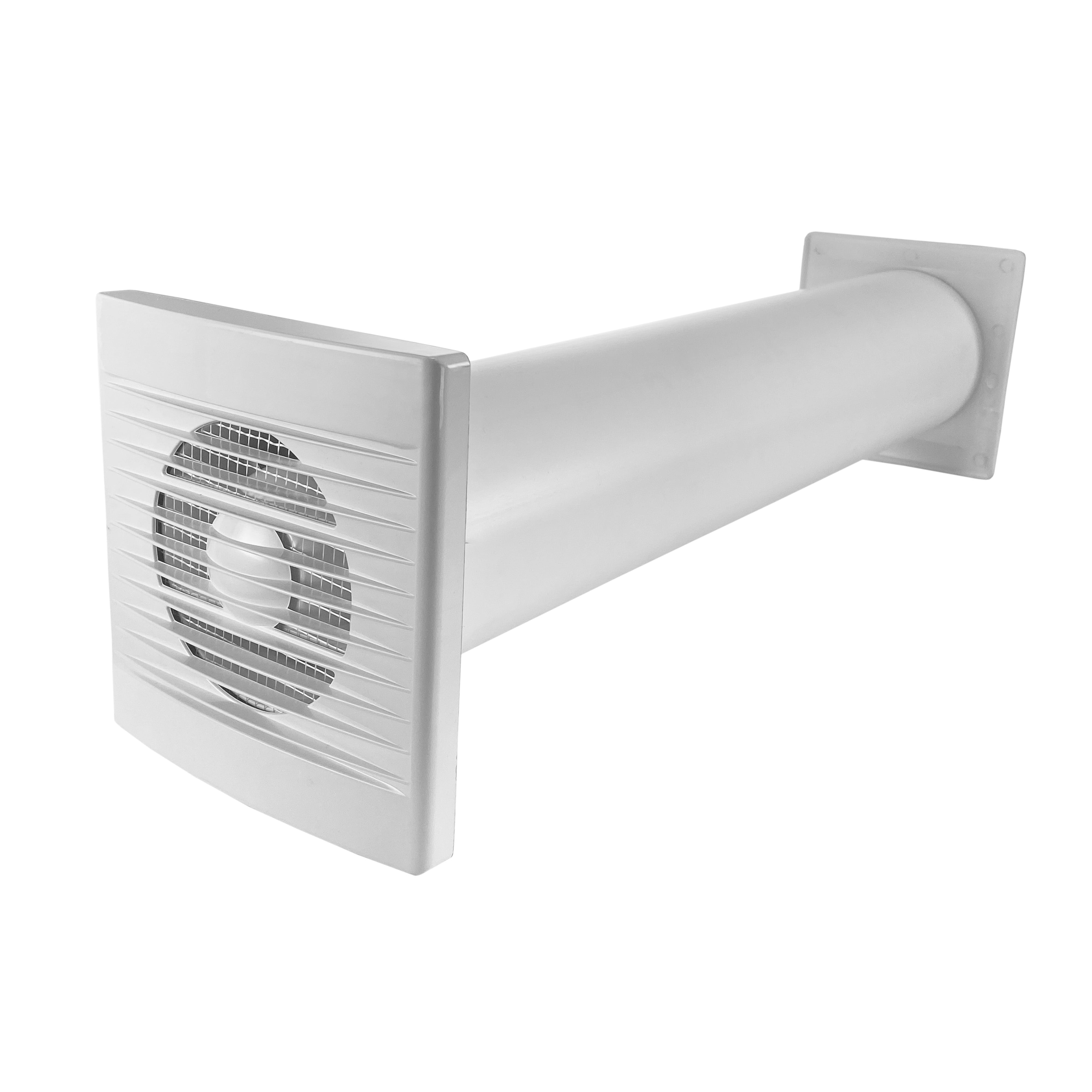

STYL Axial Wall Fan (F-STYL-100WCP)
Engineered for efficiency, this compact axial fan is built from robust ABS plastic, ensuring long-term durability in residential or light commercial settings. It features an integrated damper to prevent backflow and keep insects out, maintaining a hygienic indoor environment.
- Performance: 100 m³/h airflow with 34 Pa (3.47 mm H₂O) static pressure.
- Motor: 15W slide bearing motor operating at 2650 rpm.
- Acoustics: Quiet operation at 40 dB(A).
- Electrical: 230 V/50 Hz power supply; 0.12 A current consumption.
- Safety: Insulation class II; maximum operating temperature of 40°C.
Rigid PVC Ducting (V-P100R50CM)
This 50cm rigid round PVC pipe creates a protected, clean path for airflow through your wall cavity, shielding the system from insulation, dust, and debris. The durable plastic construction is easy to trim to your specific wall thickness using a standard hand saw.

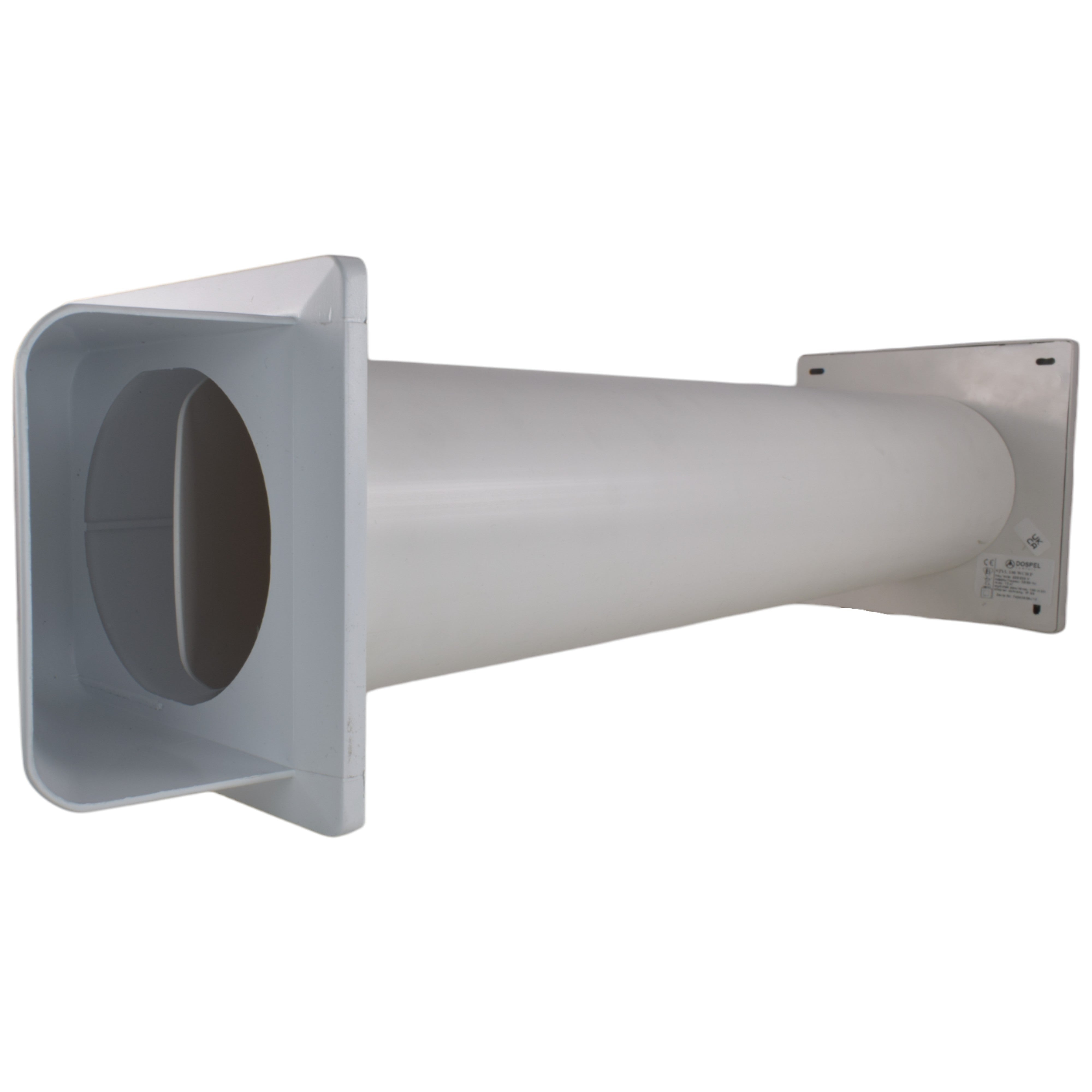

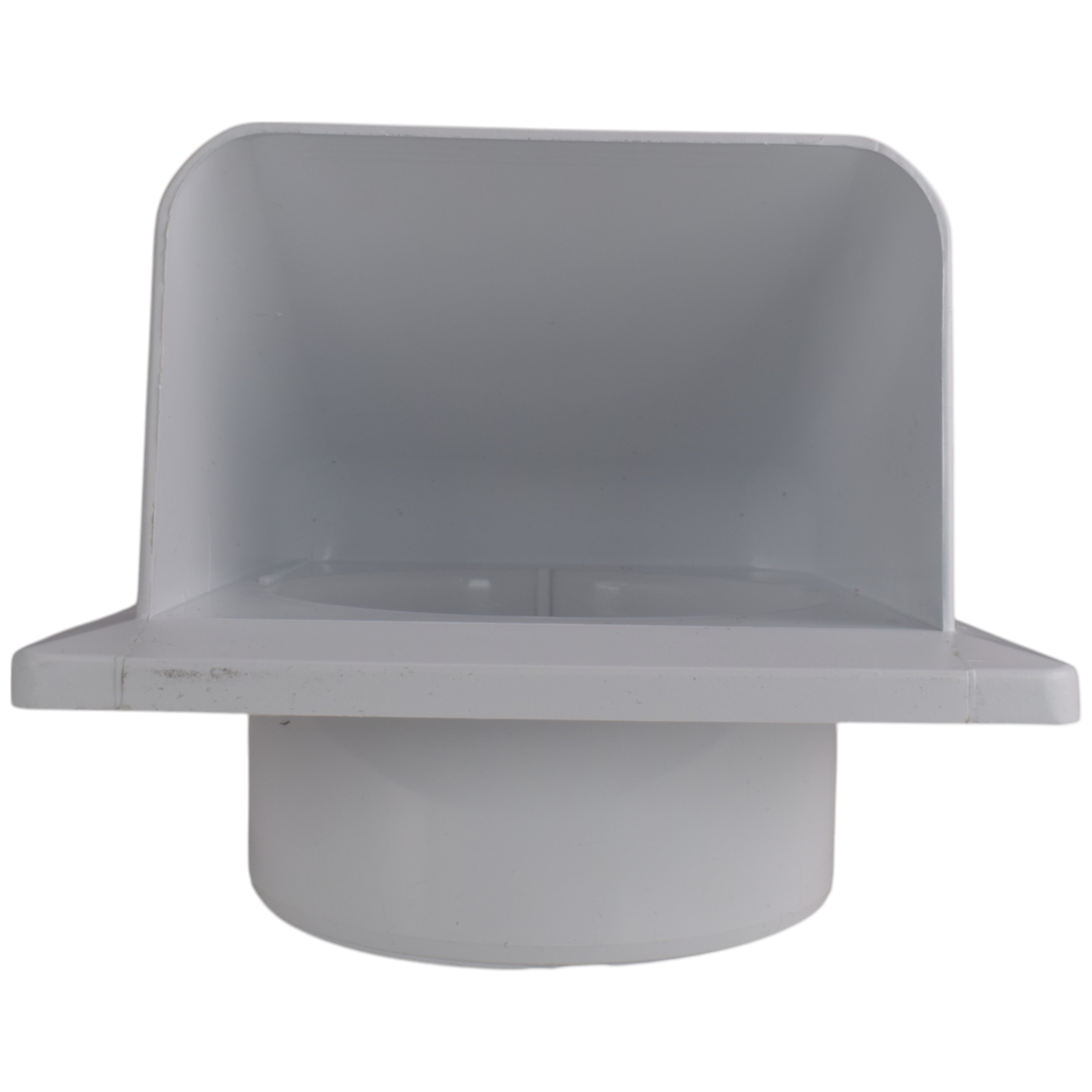

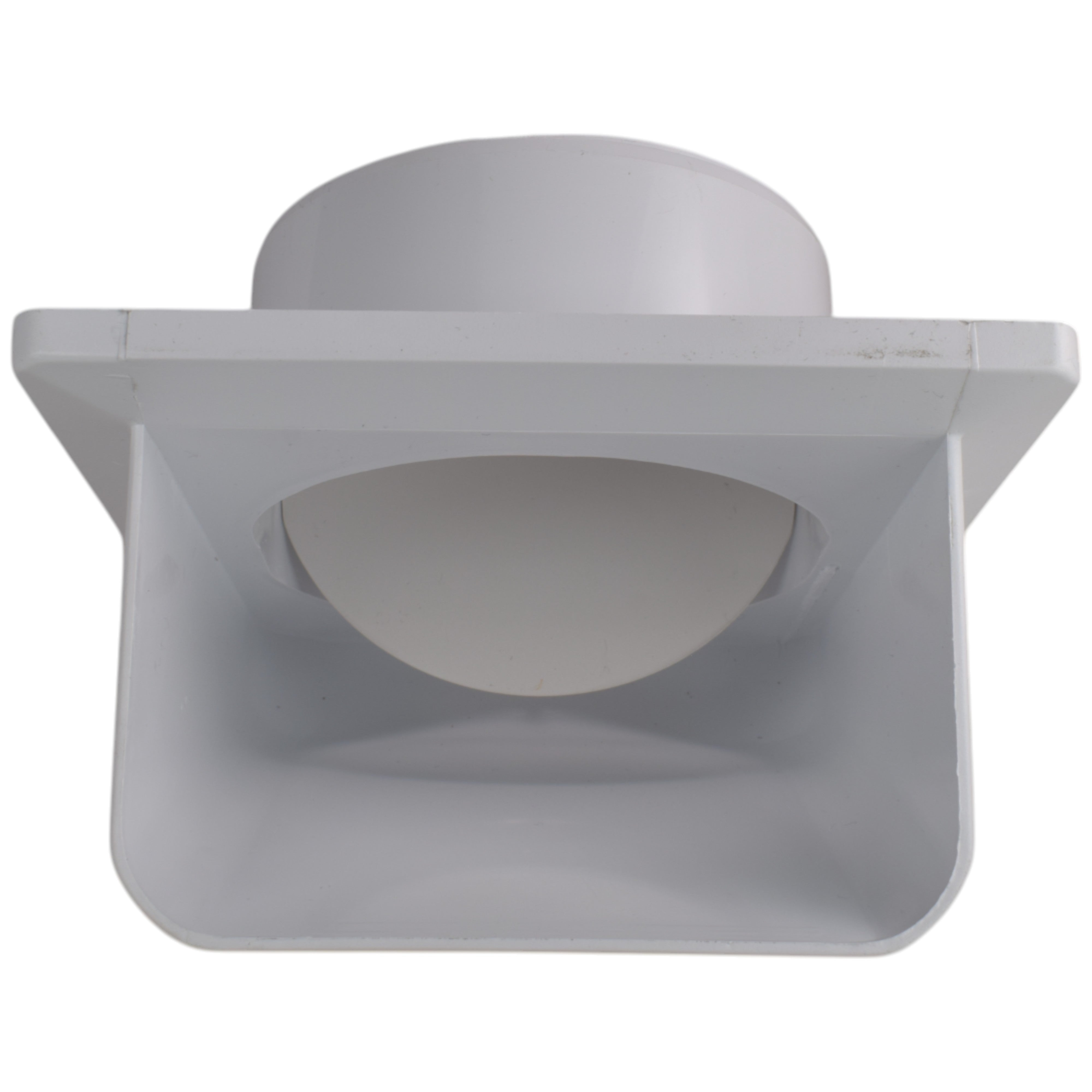

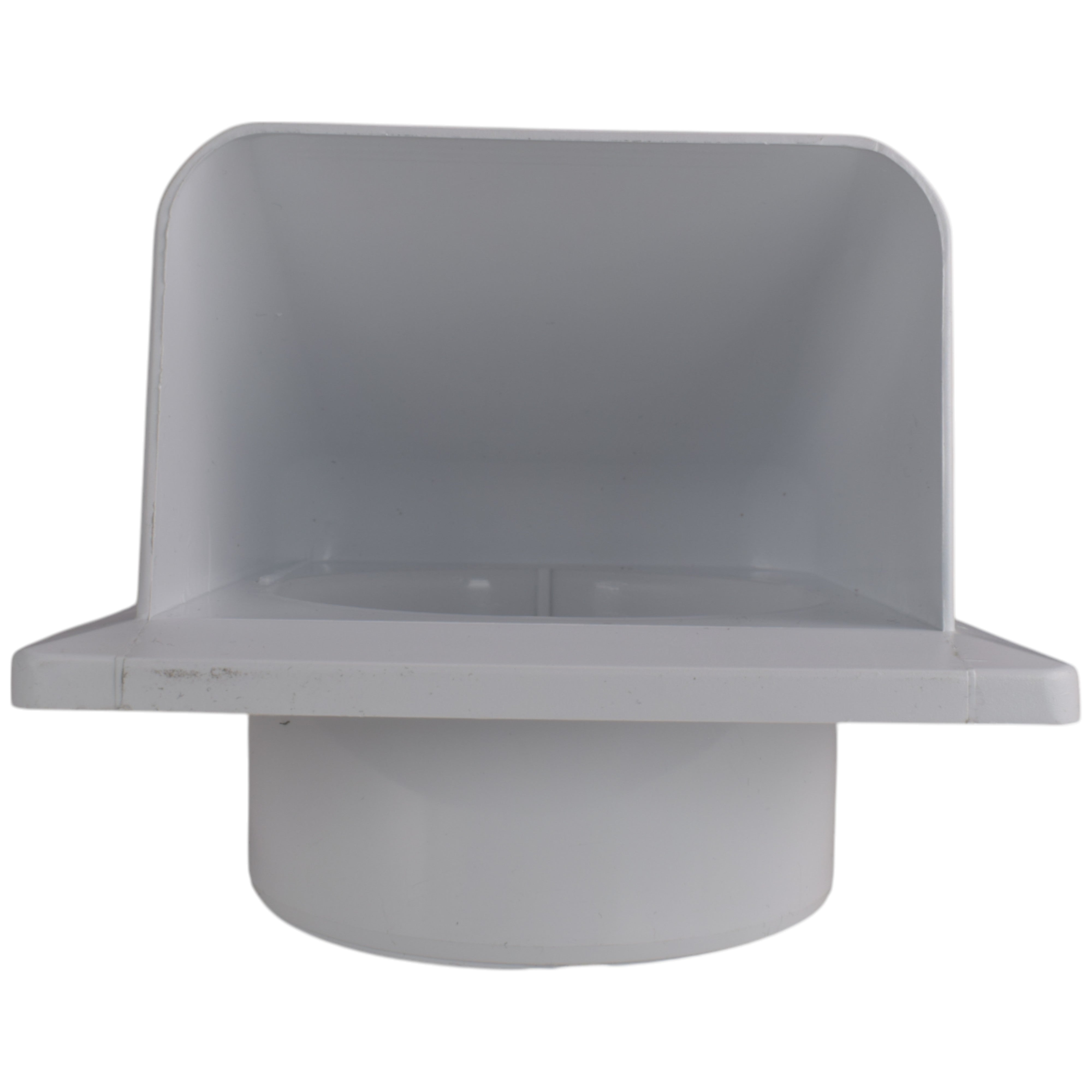

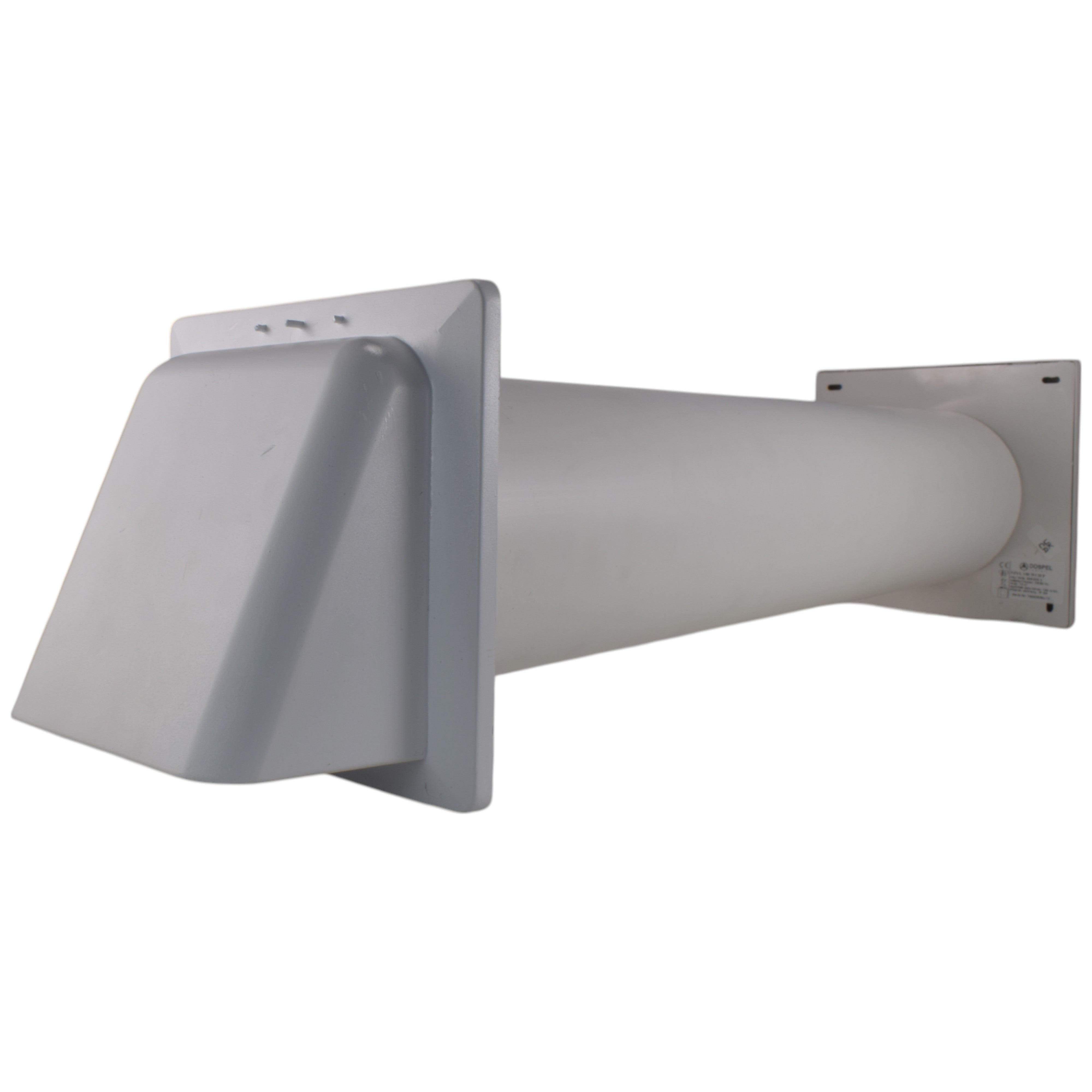

External Hooded Louvre Vent (VC-KRD0201-100-W)
Designed for both performance and protection, this external grille features a built-in damper for airflow control and a hooded louvre design to deflect rainwater and debris. Manufactured from high-impact ABS, this vent is resistant to weathering and chemical corrosion, ensuring it remains a reliable, low-maintenance component of your ventilation system.
