Description

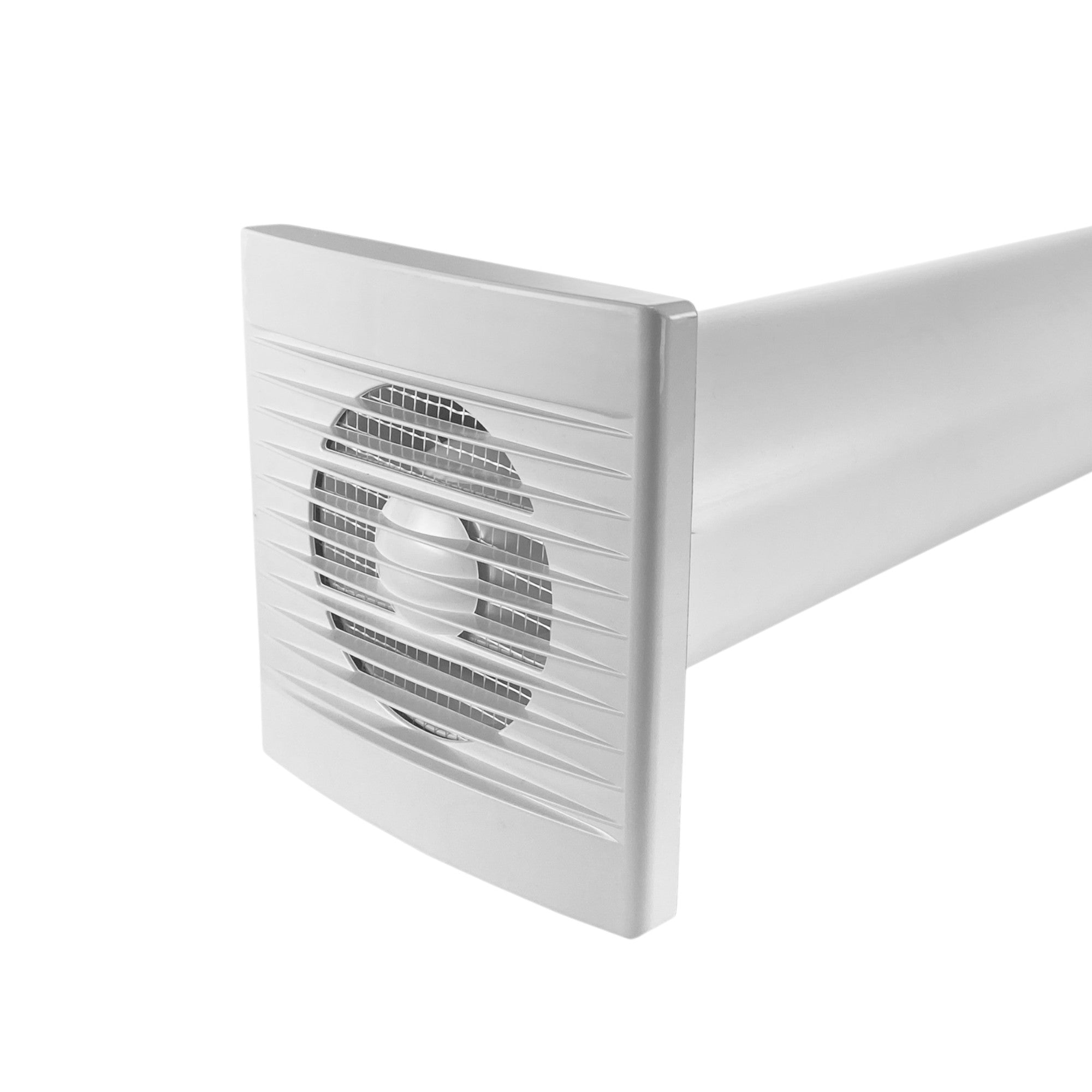

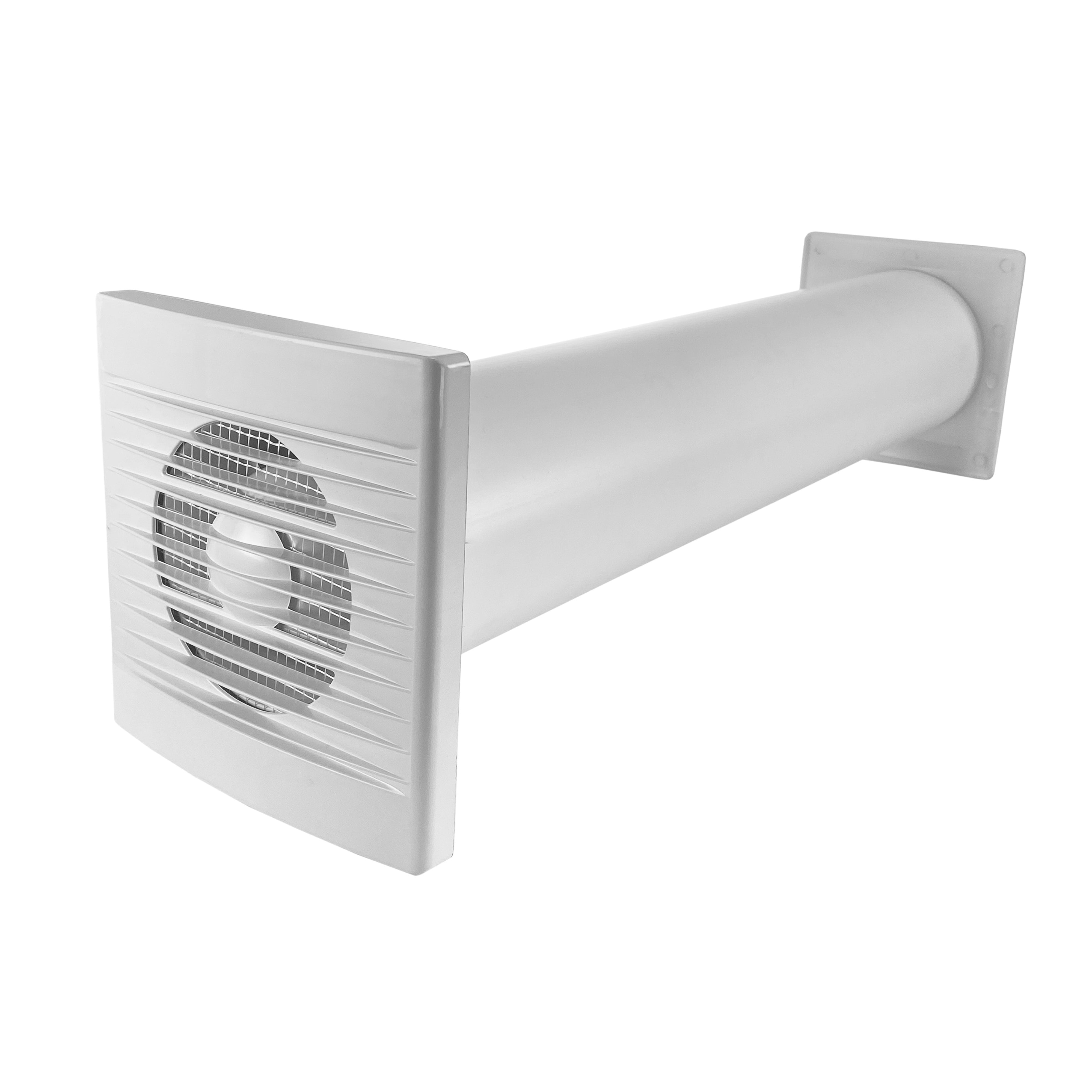

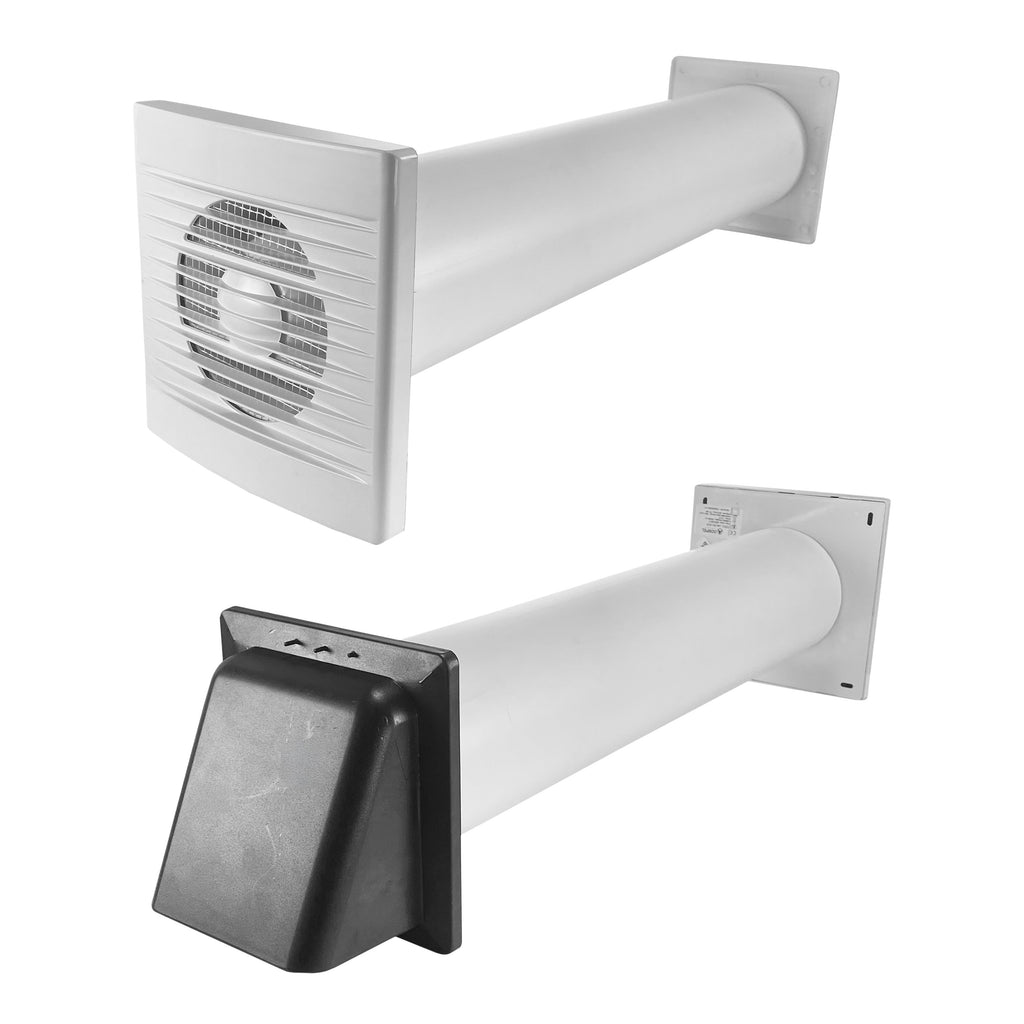

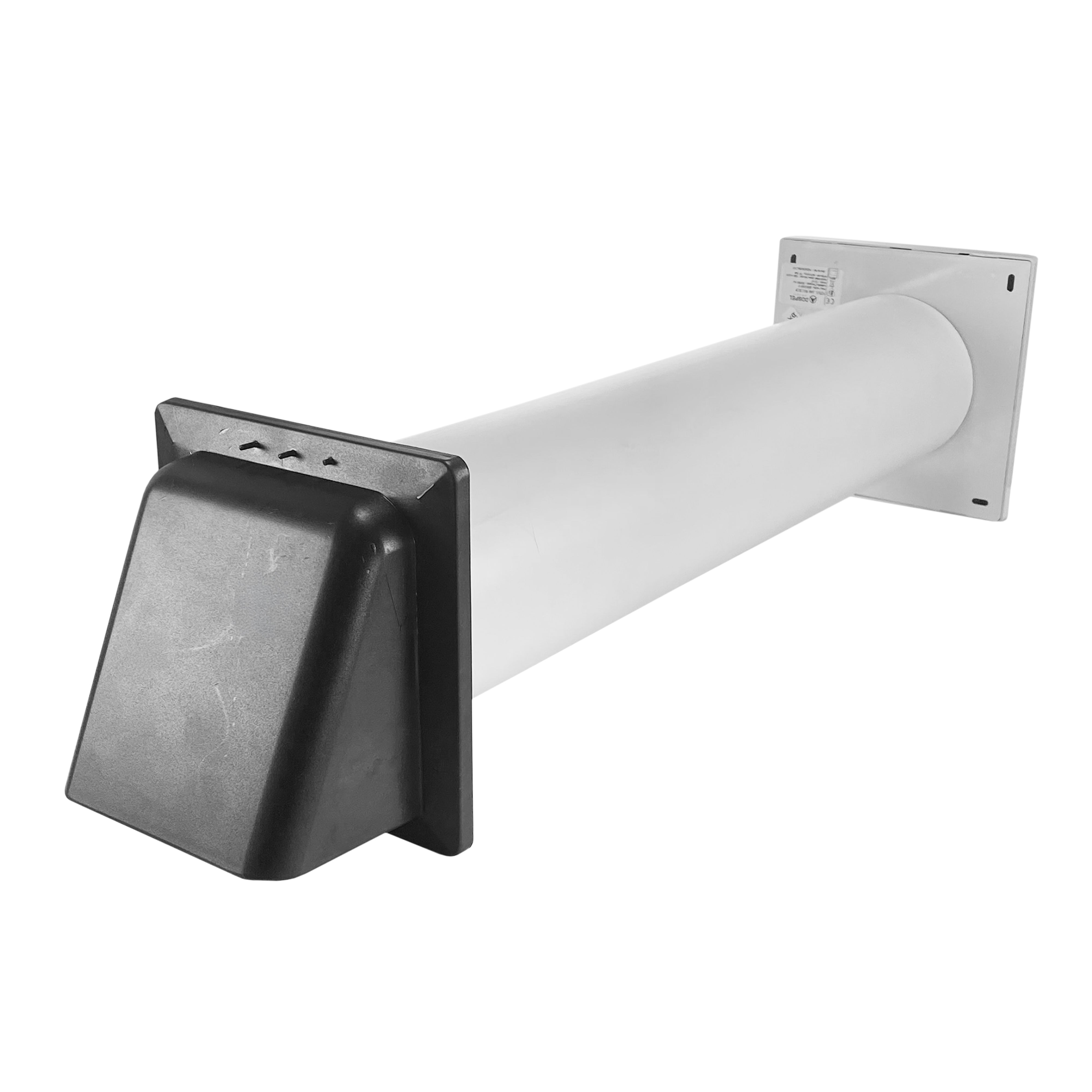

Complete Through-Wall Ventilation Solution (F-STYL-100WCHP-KIT-GRAPHITE-001)
Upgrade your indoor air quality with this all-in-one ventilation kit, specifically engineered for efficient through-wall extraction. This set combines a high-performance axial fan with a durable ducting pipe and a sleek, protective external graphite hood.

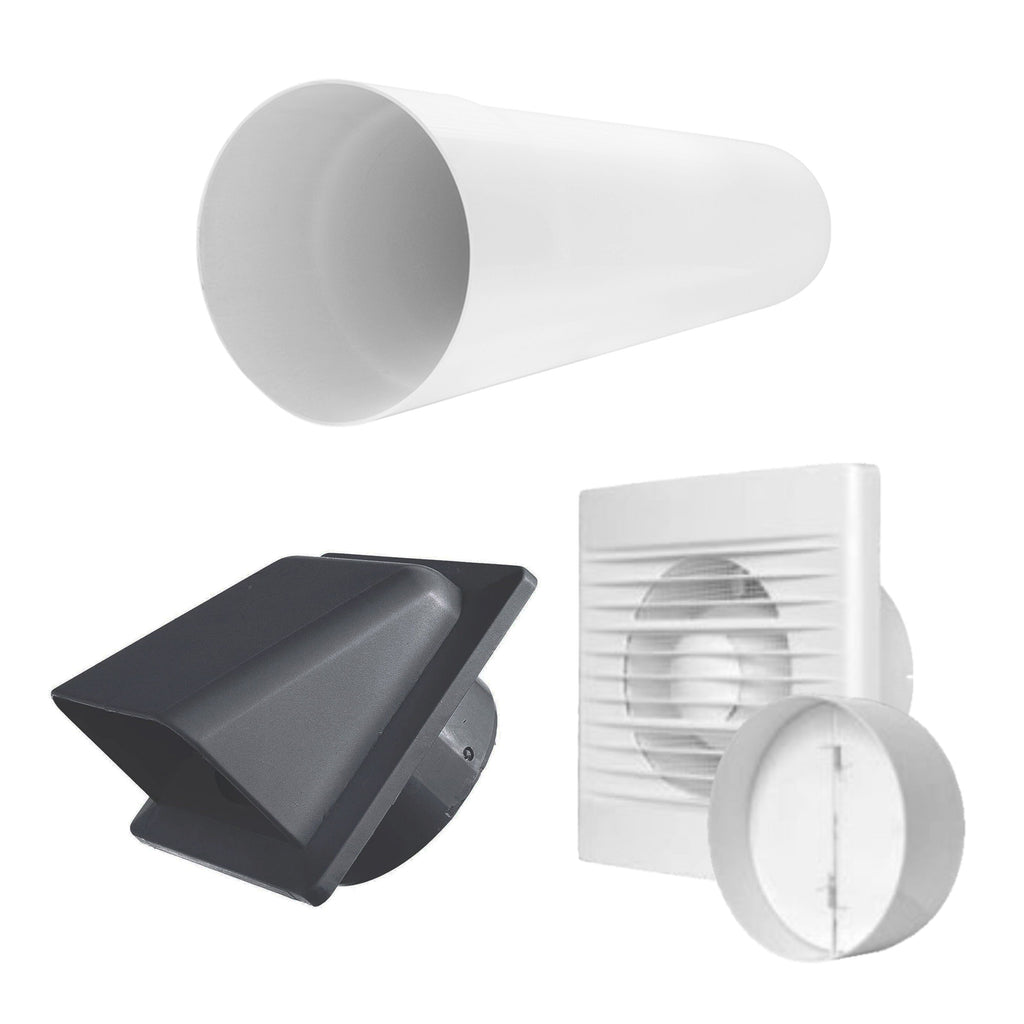

Kit Contents
- 1 x STYL Axial Fan (F-STYL-100WCHP): Features integrated timer and humidistat for automated moisture control.
- 1 x Rigid PVC Duct Pipe (V-P100R50CM): 50cm length for a secure, protected air path through the wall.
- 1 x External Hooded Graphite Louvre Vent (VC-KRD4358-100-GRAPHITE): Provides weather protection and a modern finish.

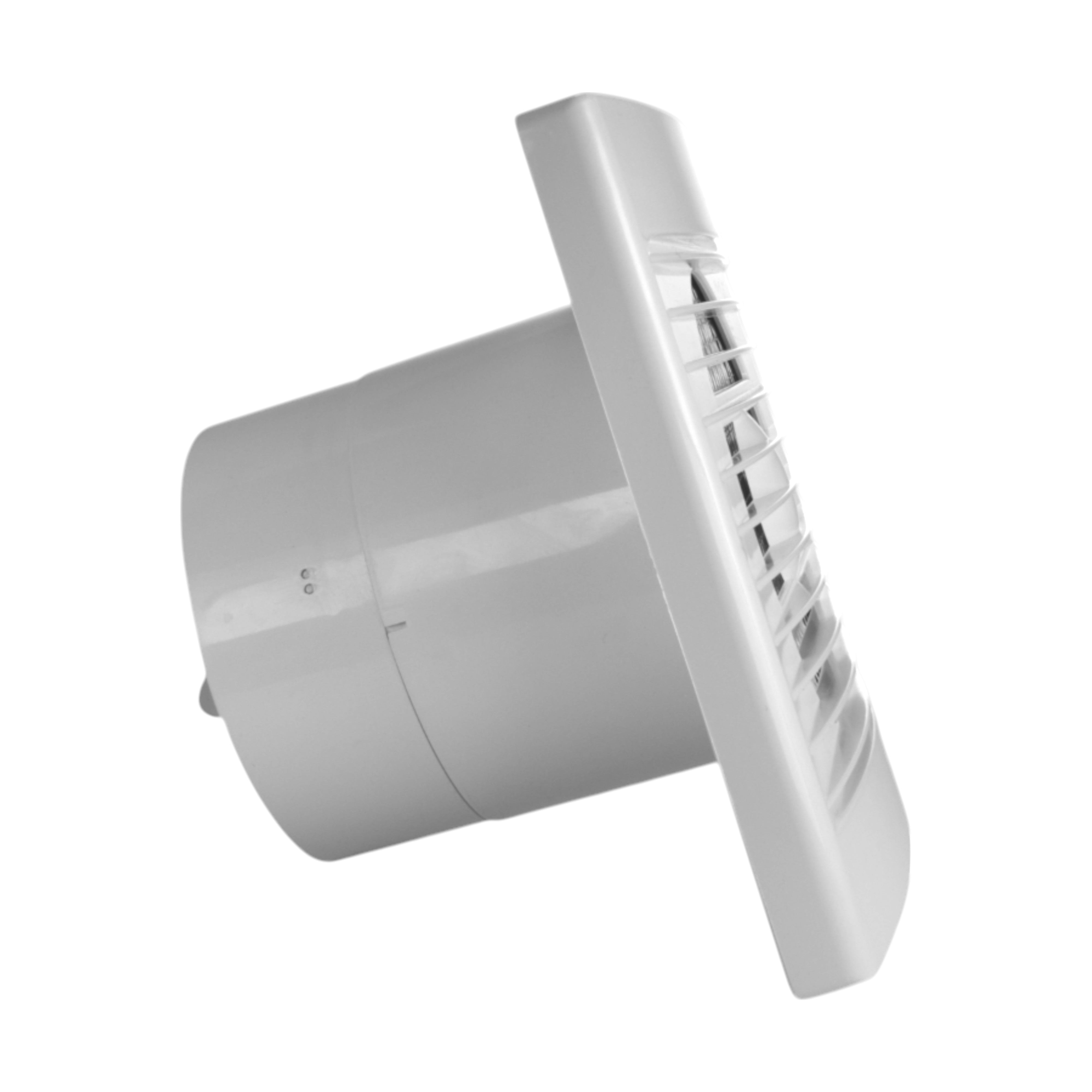

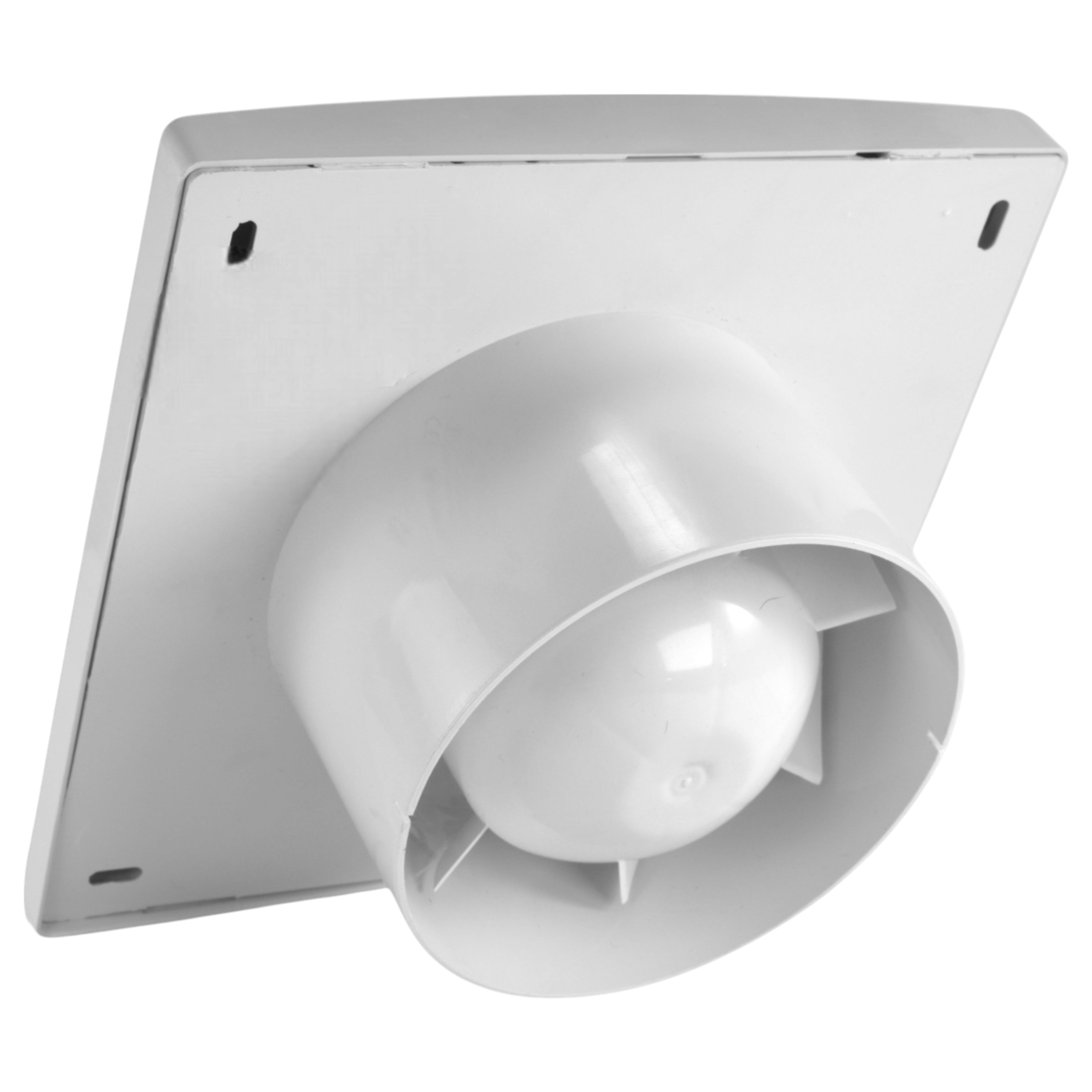

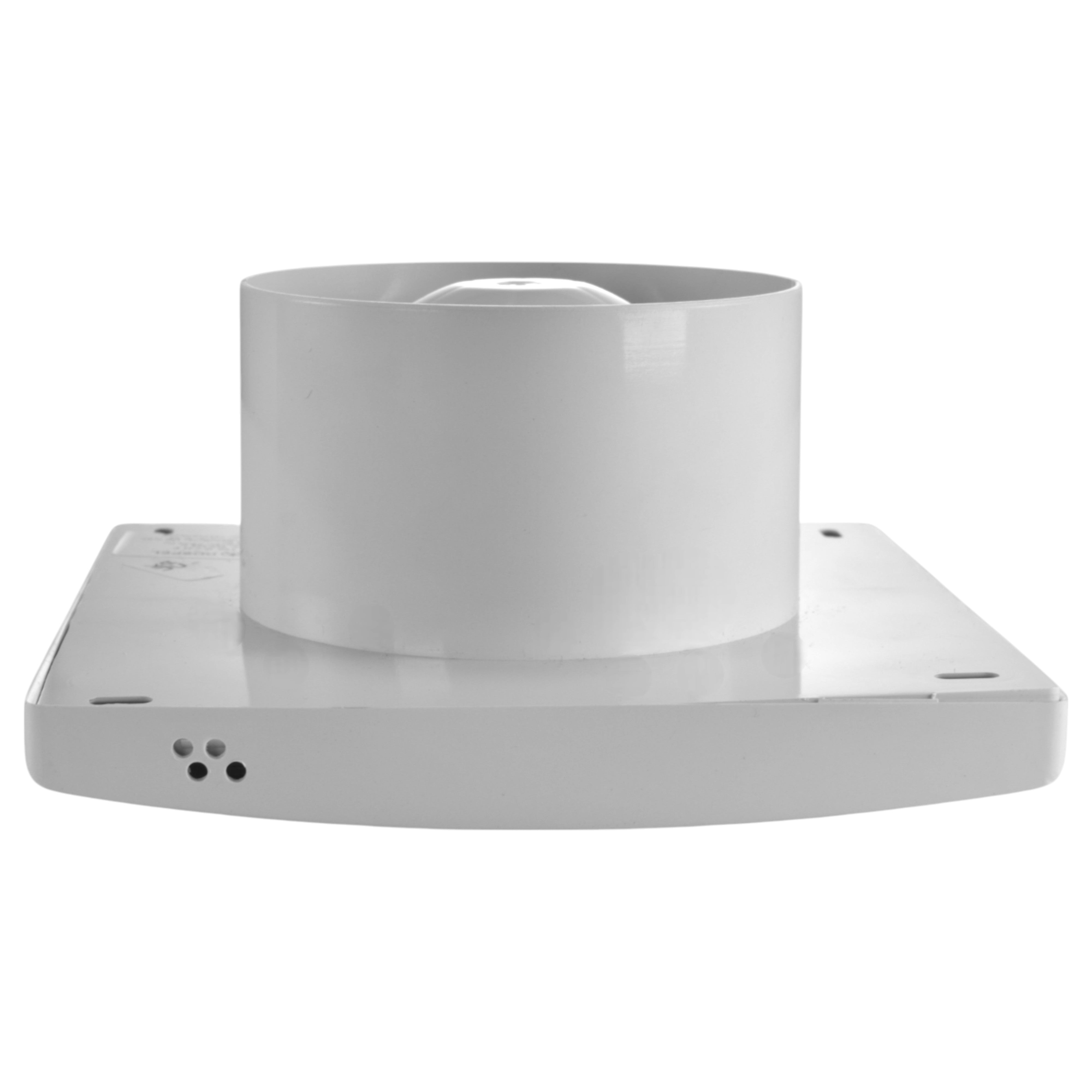

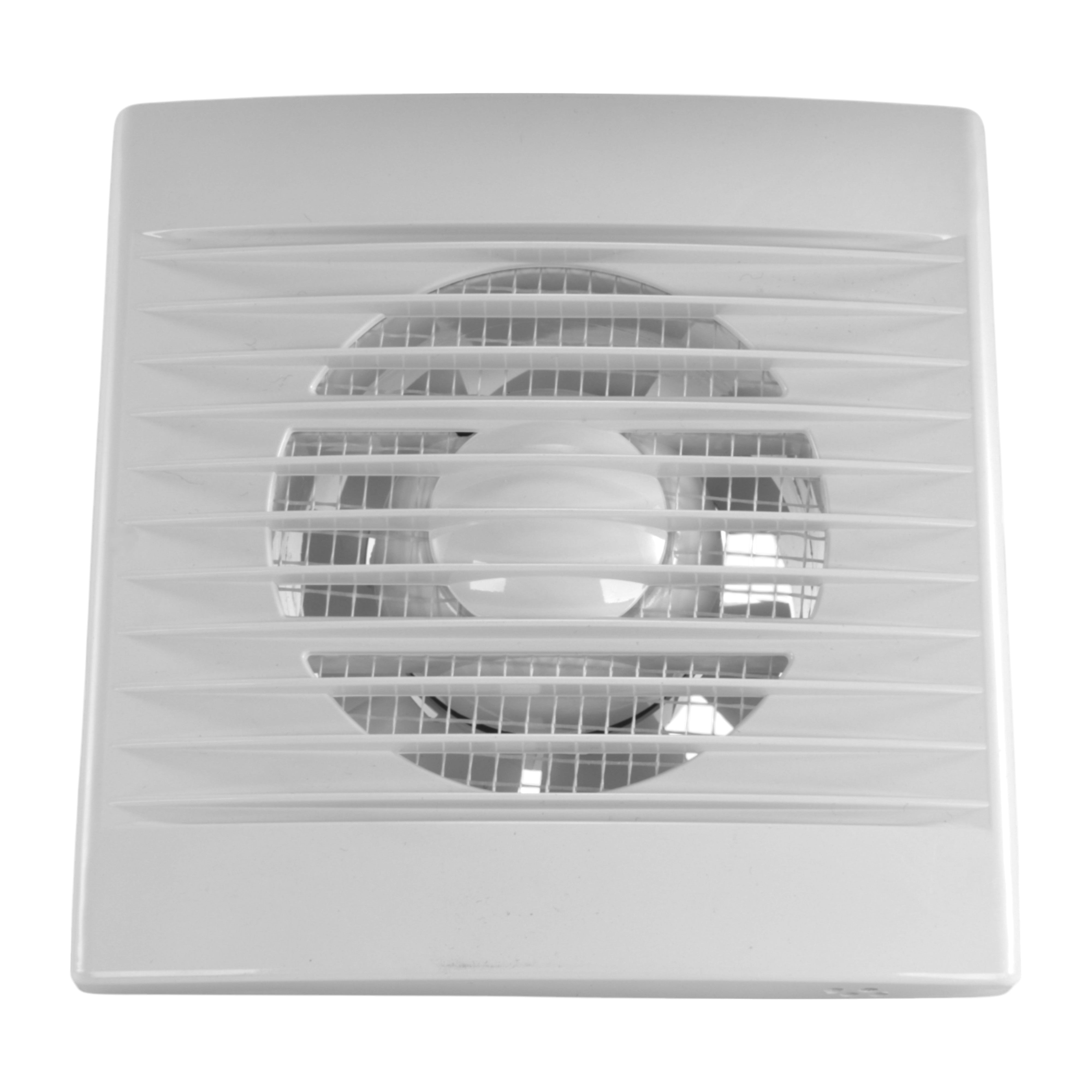

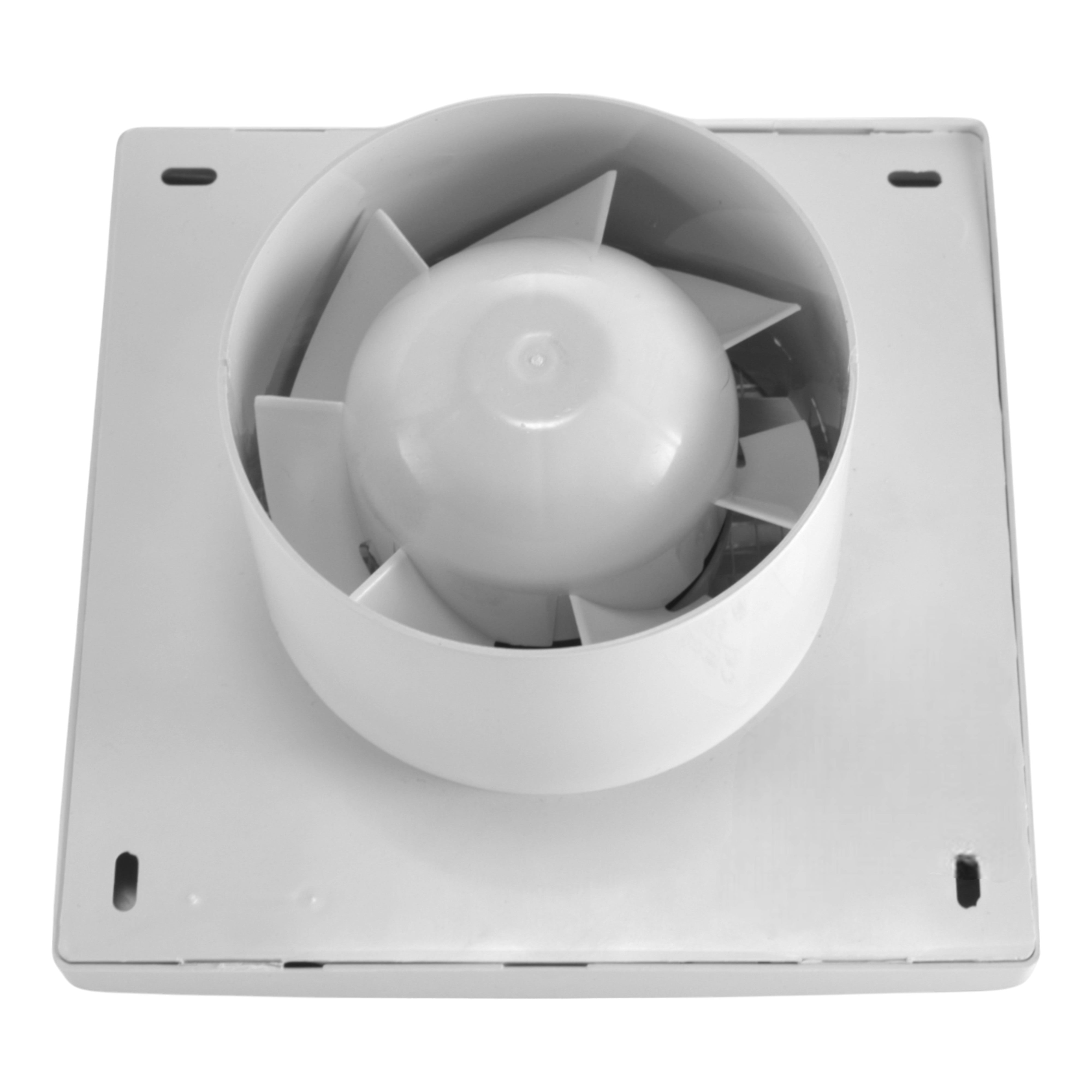

STYL Axial Fan (F-STYL-100WCHP) Specifications

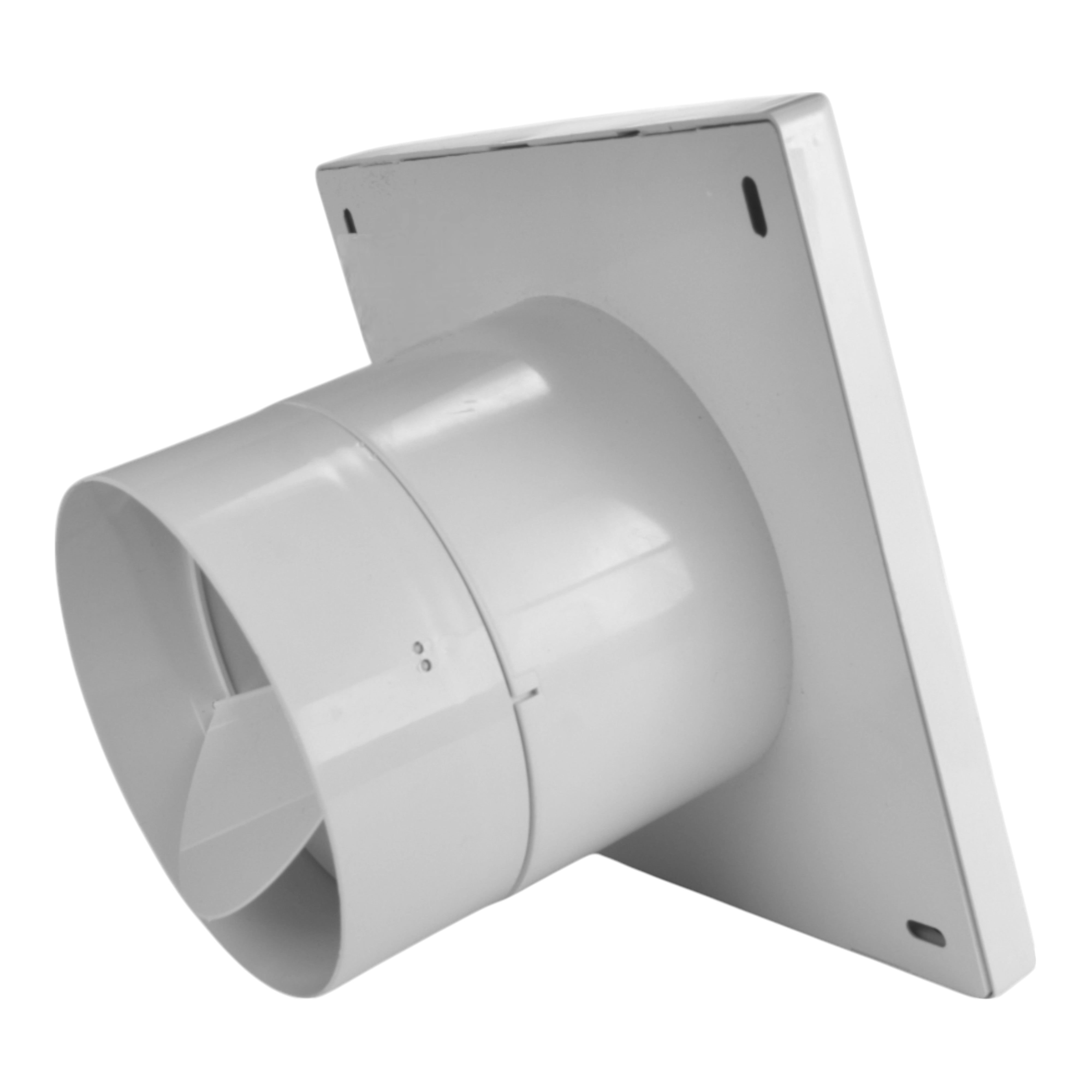

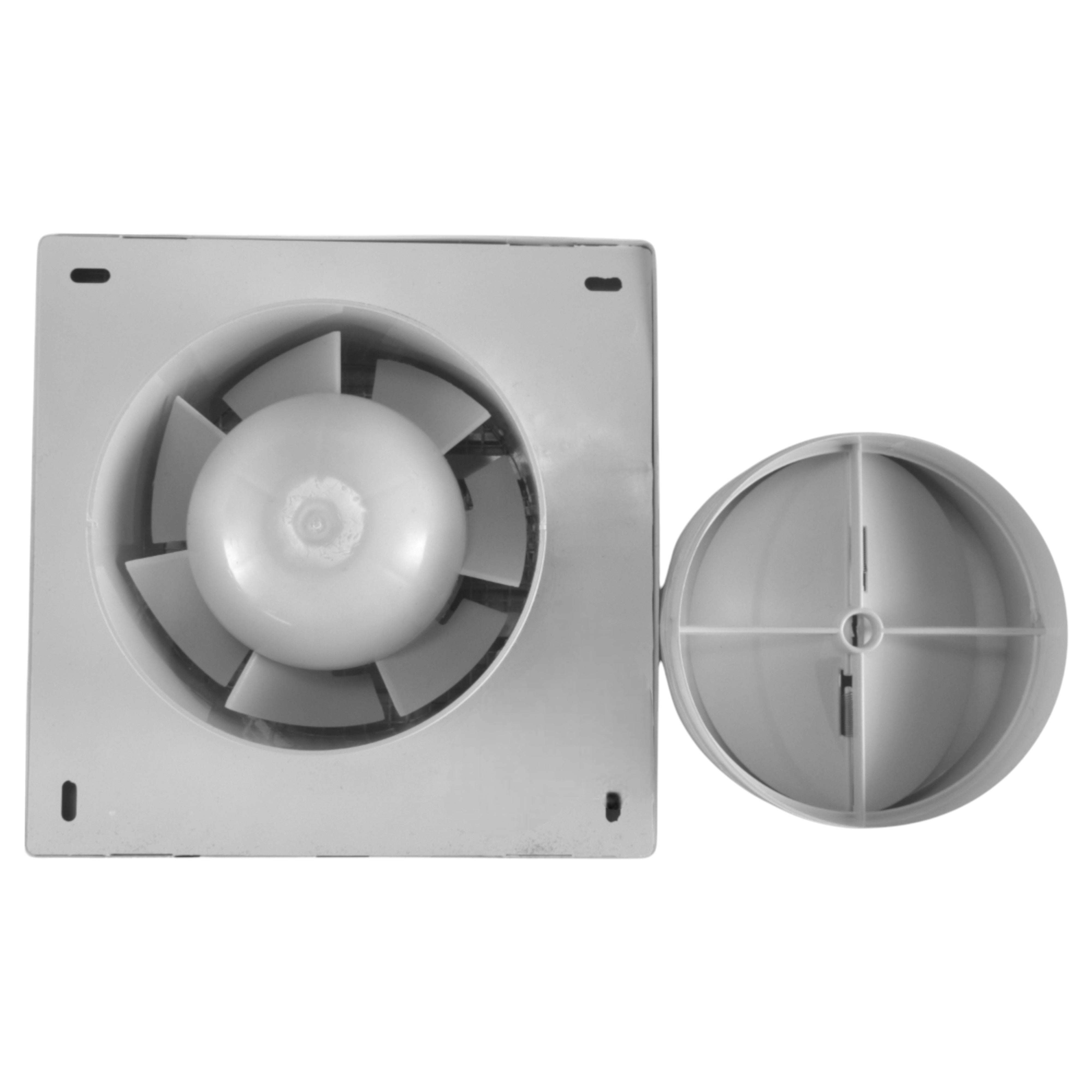

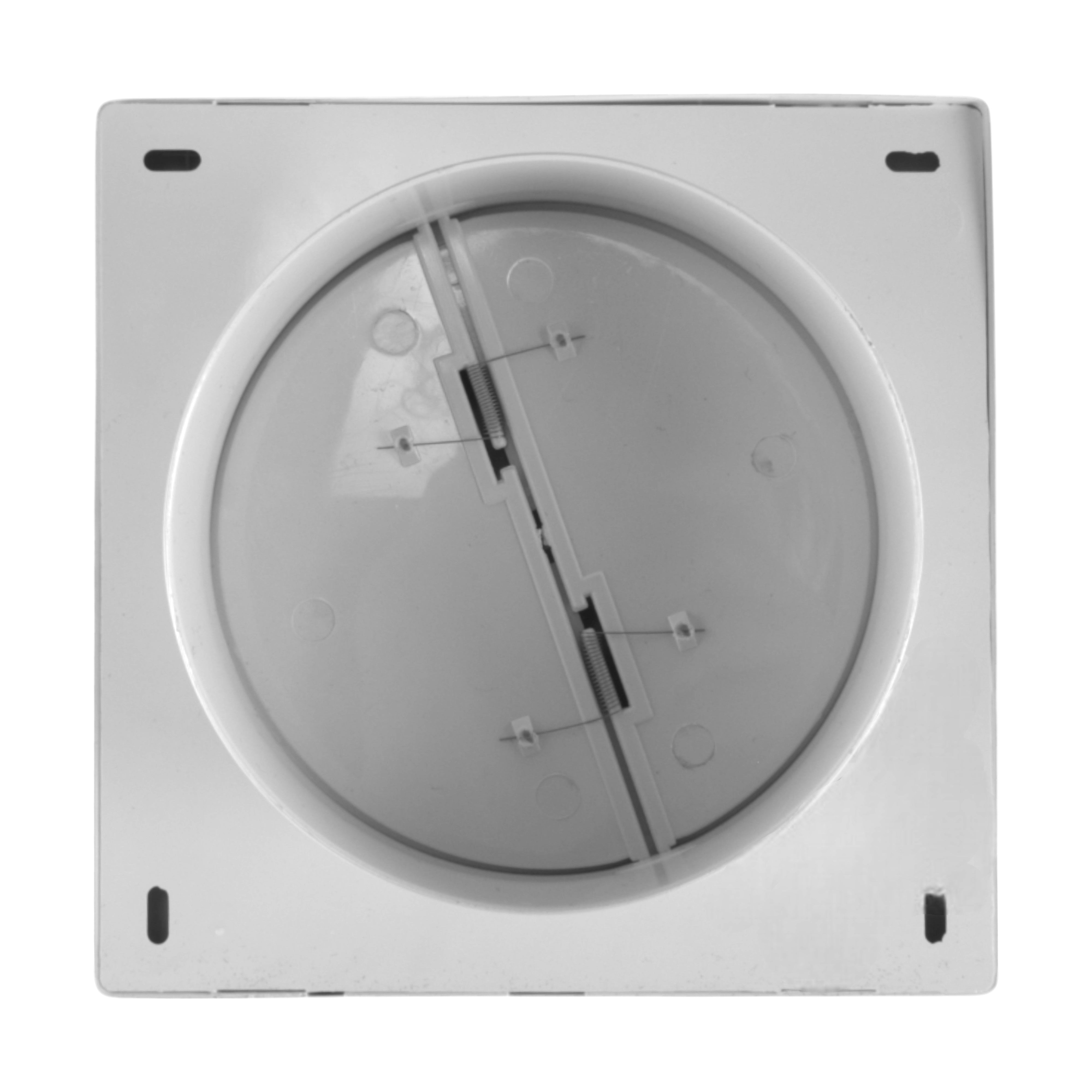

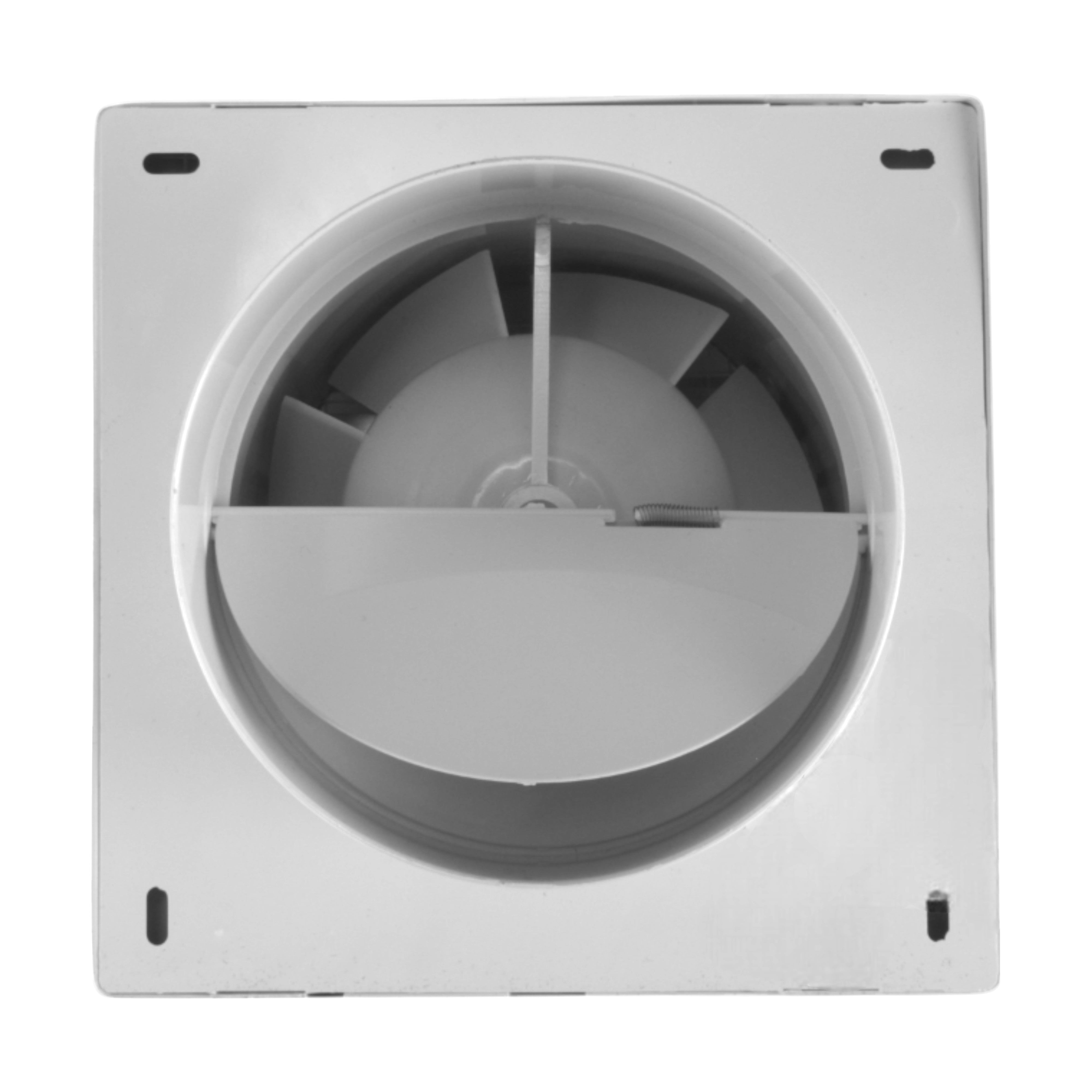

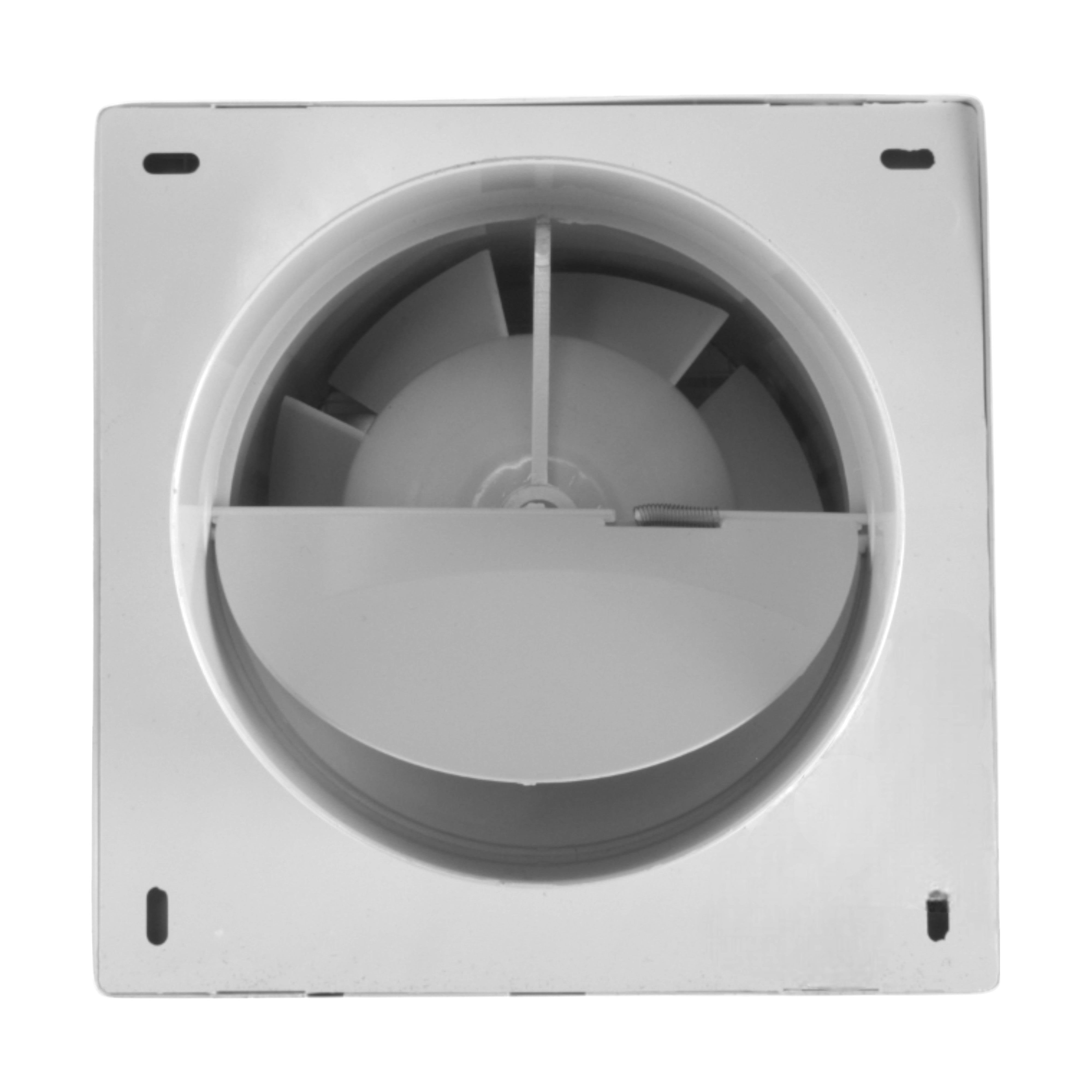

This 100mm axial fan is built from robust ABS plastic, offering a lightweight yet durable solution for residential and light commercial ventilation. It includes an integrated damper to prevent backflow and insect entry.
- Airflow Rate: 100 m³/h
- Static Pressure: 34 Pa (3.47 mm H₂O)
- Motor Speed: 2650 rpm (Slide bearing)
- Power Consumption: 15W / 0.12 A
- Voltage: 230 V / 50 Hz
- Acoustic Pressure: 40 dB(A)
- Max Operating Temp: 40°C
- Insulation Class: II
Rigid PVC Ducting (V-P100R50CM)
Ensure a clean, unobstructed airflow with this 50cm rigid round PVC pipe. Designed to shield your ventilation path from cavity insulation, dust, and debris, this pipe is easy to trim to your specific wall thickness using a standard hand saw.
External Graphite Louvre Vent (VC-KRD4358-100-GRAPHITE)
Finished in a professional graphite tone, this external hood features a built-in damper to manage airflow and prevent rainwater or debris from entering your system. Crafted from high-impact ABS plastic, it is engineered to resist chemical corrosion and weathering, ensuring long-term structural integrity and a clean aesthetic for your exterior wall.
